Australian GP: Latest F1 tech updates, straight from pitlane

Giorgio Piola and Sutton Images bring you the Formula 1 technical updates on show in the Melbourne pitlane at the Australian Grand Prix, giving insight into the relentless development undertaken by the teams in pursuit of more performance.

shares
comments
Australian GP: Latest F1 tech updates, straight from pitlane

Click through the images below...

Renault F1 Team R.S.19, exhaust detail

Renault F1 Team R.S.19, exhaust detail
1/14

Photo by: Erik Junius

A close up of the Renault RS19 from behind, note how the wastegate exhausts have been mated to the side of the main exhaust outlet. The team also looks set to utilize the small monkey-seat winglet above the exhaust in order to tune its direction.

Mercedes AMG F1 W10, DRS detail

Mercedes AMG F1 W10, DRS detail
2/14

Photo by: Erik Junius

A close up of the Mercedes W10’s new rear wing DRS actuator pod, which now features serrations on the trailing edge. These have been added in order to impart an aerodynamic flow structure that aids the rear wing.

Mercedes AMG F1 W10, exhaust detail

Mercedes AMG F1 W10, exhaust detail
3/14

Photo by: Erik Junius

An extreme close up of the Mercedes W10’s exhaust layout, note how the wastegate pipes have been positioned away from the main exhaust. Also worth noting is the thermal sticker atop the crash structure, used by the team to monitor localized temperature imparted on the bodywork.

Mercedes AMG F1 W10 front wing detail

Mercedes AMG F1 W10 front wing detail
4/14

Photo by: Giorgio Piola

A look at the Mercedes W10’s front wing behind shows how the designers are still making a concerted effort to push flow outboard even though many of the tools previously available have been taken away from them.

Ferrari SF90 front suspension detail

Ferrari SF90 front suspension detail
5/14

Photo by: Giorgio Piola

The view under the Ferrari SF90’s chassis, which gives us a look at the five-element turning vanes.

Ferrari SF90 rear detail

Ferrari SF90 rear detail
6/14

Photo by: Giorgio Piola

A look at the rear of the Ferrari SF90, note the number of slots on the floor's edge which are being used to work the airflow hard and help create a kind of airflow 'skirt' to seal its edge, enveloping the flow traveling beneath toward the diffuser.

Mercedes AMG F1 W10 halo detail

Mercedes AMG F1 W10 halo detail
7/14

Photo by: Erik Junius

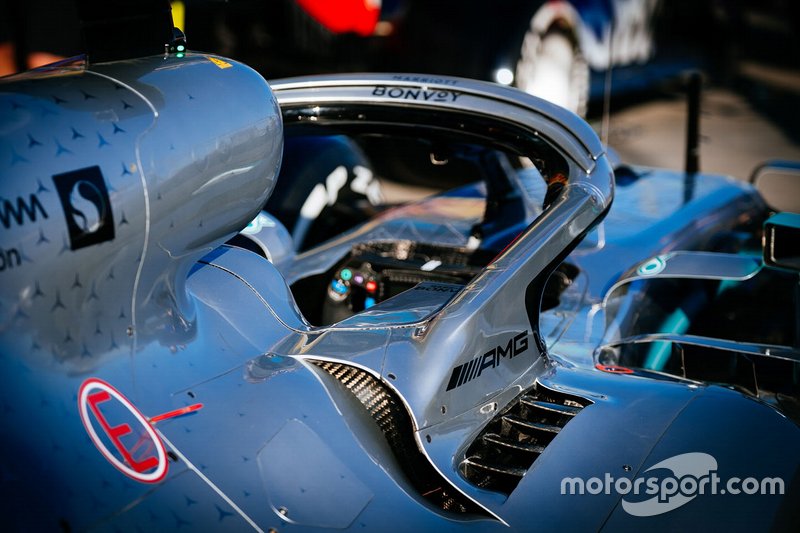

A great shot of the Mercedes W10 from behind shows off the two winglets atop the halo and also the sidepod cooling outlet that forms the rearward transition of the halo back into the car's bodywork.

Williams FW42 front wing detail

Williams FW42 front wing detail
8/14

Photo by: Giorgio Piola

A look at Williams’ front wing, which features several elements designed to encourage airflow to move across and around the front tyre, but none more prominent than the wedge-shaped flow conditioner on the upper outer corner.

McLaren MCL34 suspension detail

McLaren MCL34 suspension detail
9/14

Photo by: Giorgio Piola

This image of McLaren’s front brake assembly during the build up phase shows how pipework used internally carries airflow to cool different components, such as the caliper.

Mercedes AMG F1 W10 suspension detail

Mercedes AMG F1 W10 suspension detail
10/14

Photo by: Giorgio Piola

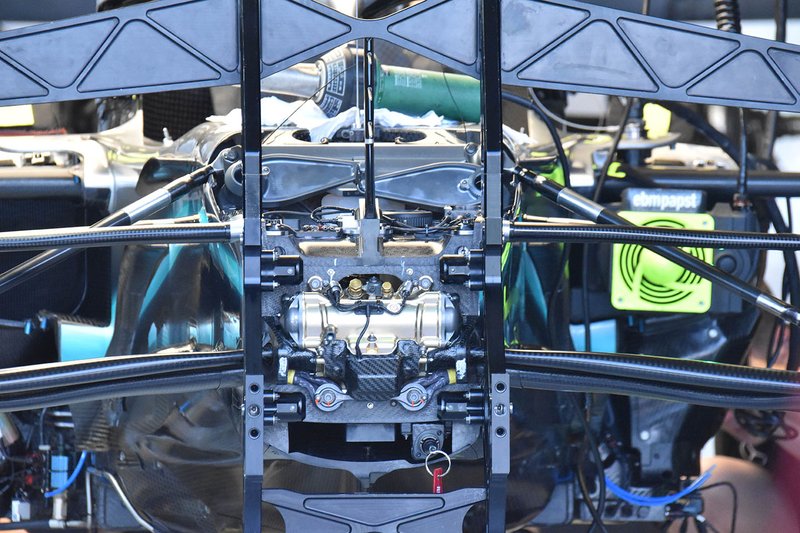

A look at the Mercedes W10’s front suspension layout, which is not dissimilar to last year’s car.

Red Bull Racing RB15 engine detail

Red Bull Racing RB15 engine detail
11/14

Photo by: Giorgio Piola

A fantastic shot of the Red Bull RB15 sans bodywork, which allows us to see the placement of the various power unit coolers and the routing of their pipework.

Sauber C38 rear detail

Sauber C38 rear detail
12/14

Photo by: Giorgio Piola

This internal view of the Alfa Romeo C38 shows how the various oil coolers associated with the power unit are stacked above it.

Scuderia Toro Rosso STR14 bodywork detail

Scuderia Toro Rosso STR14 bodywork detail
13/14

Photo by: Giorgio Piola

This close up of the Toro Rosso STR14 without its bodywork shows how the team has mounted some of the components associated with cooling the power unit in a saddle position above it. Also note the placement of the side impact support spar, which like the Ferrari solution from 2017-18 is now much lower, allowing more freedom when it comes to the shape of the sidepod bodywork.

Mercedes AMG F1 W10 engine detail

Mercedes AMG F1 W10 engine detail
14/14

Photo by: Giorgio Piola

As a comparison here’s the more conventional mounting position, of which Mercedes is now the only team to still be using.
