German GP: Latest F1 tech updates, direct from the garages
Giorgio Piola and Sutton Images showcase the latest Formula 1 technical developments and details on show in the Hockenheim pitlane at the German Grand Prix.
Giorgio Piola Matt Somerfield
Edited: Jul 19, 2018, 10:32 PM
Copy link
Share on Viber

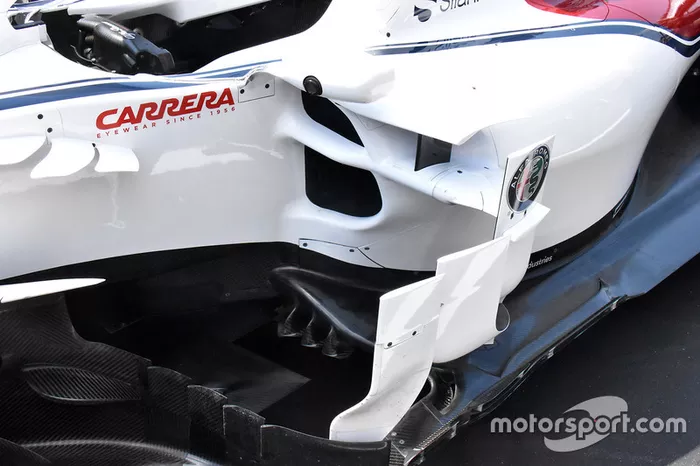

Development: Sauber’s aggressive development programme continues as it unveils yet more alterations for the German GP. Three new fins have been added to the side of the cockpit (ahead of the Carrera logo) which coerce the airflow in to moving around and through the revised sidepod bodywork.
Development: Alterations made to the sidepods, revising the shape of the lower inlet and bringing the upper one forward to maximize flow into it.
Development: Renault will trial a new front wing concept in Germany, as it looks to improve the car’s mid-to-high-speed characteristics. The wing features a very short inboard section before it meets with the adjuster, meaning only this section is adjusted during wing angle changes. This gives the outer section more real estate with which to shape the wake generated by the front tyre.
Development: Another great view of Renault’s new front wing, showing off the multiple surfaces that the endplate has been divided into that improves the outwash effect.
Development: A 3D-printed mock-up of a lower wing mirror solution is mounted on the RB14 (right) in order to assess visibility.

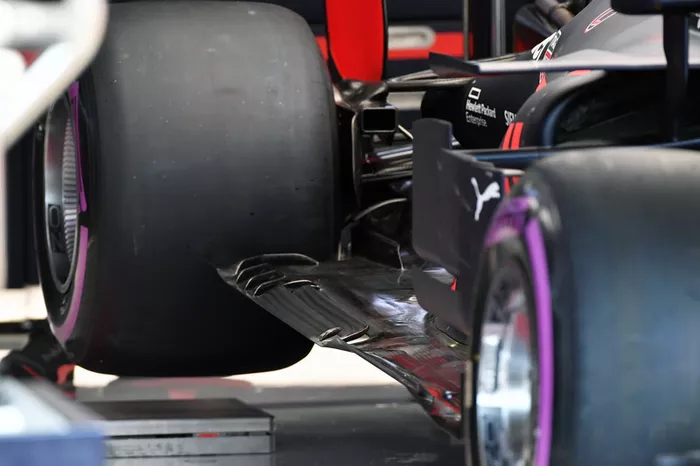

Development: A look at the new floor introduced by Red Bull, which features two elongated fully-enclosed holes on the floor’s edge that merge toward the angled holes ahead of the rear tyre.
Development: A forward view of the new elongated fully-enclosed holes in the RB14’s floor.
Development: Mercedes has added some slots in the splitter extension (highlighted in yellow), which has also led to slots being needed in the cockpit canard above in order to fulfill legality obligations (red arrow).
Development: A close up of the cockpit canard which now features slots in it, in order to legalise the slots in the floor below.

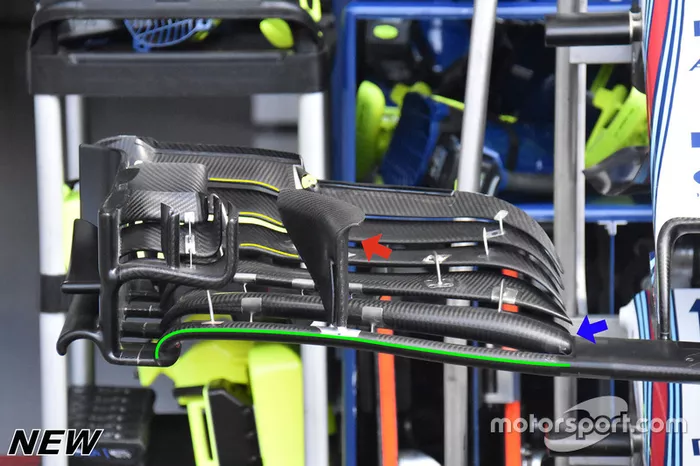

Development: Williams has a new front wing available in Germany which features numerous differences to the mainplane’s leading edge (green highlight), its connecting point with the neutral section (blue arrow), the ‘r’ cascade (red arrow) and the outboard flapped region (yellow highlights).

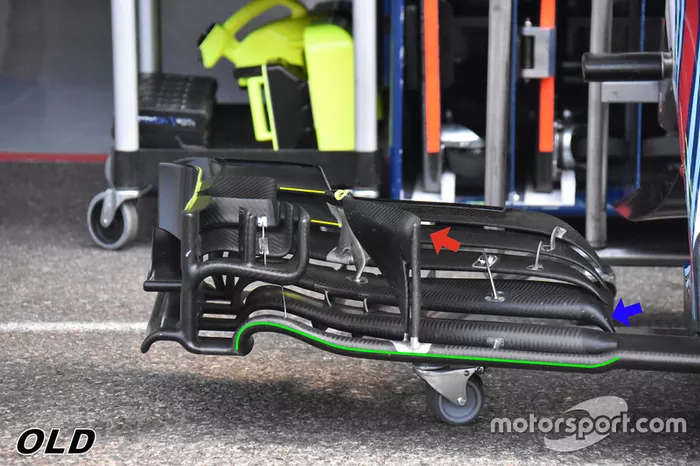

Detail: Williams’ older specification front wing for comparison, with the same sections highlighted.
Detail: Mercedes has mounted its engine cover with a chimney-style outlet, albeit with the flat section on top of the spine closed off.

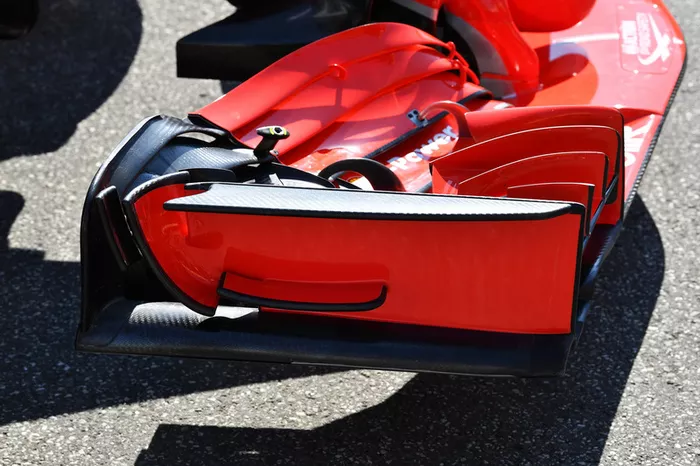

Detail: A look at Ferrari’s front wing endplate and over the top at the flap geometry.
Detail: A close up of the SF71H’s bargeboards, which were last updated in Canada

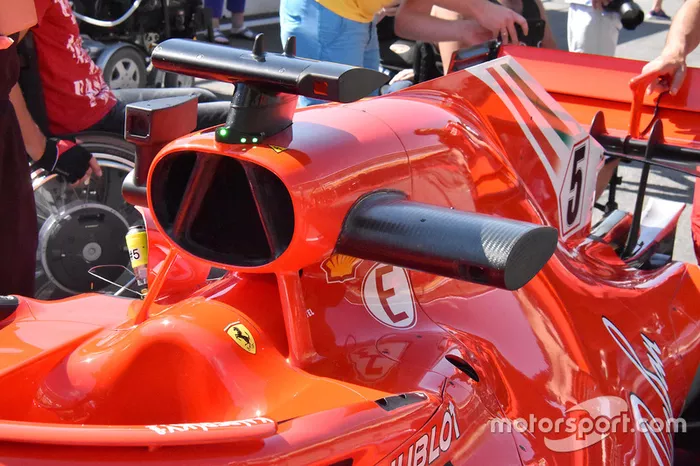

Detail: Ferrari with an additional camera (likely thermal) to monitor tyre behaviour, on the right hand side of the airbox. The pod on the left side is also enlarged to carry the additional hardware needed for the camera.

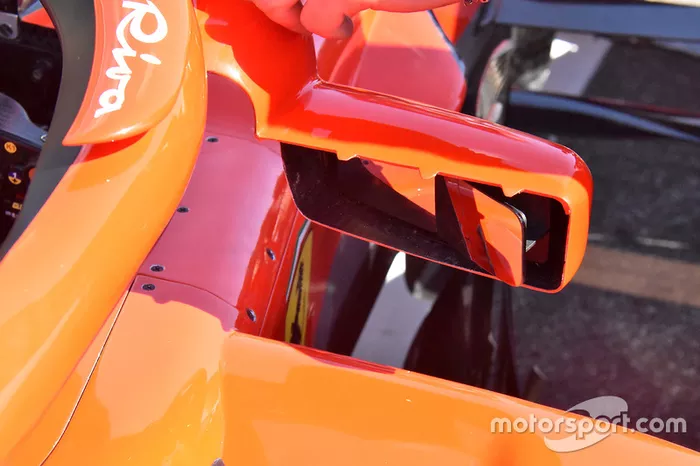

Detail: A close up of Ferrari’s mirror shows that the reflective part has been split into two, in order to improve rearward visibility.
Detail: A look at the ‘tyre squirt’ holes placed ahead of the rear tyre on the SF71H, which have been joined by one of the elongated floor gills as part of the latest update.
Detail: An overview of the insanely-complex area ahead of the sidepods, consisting of the bargeboards and various other fins and flaps.
Detail: A close up of the outer portion of the W09’s diffuser, which sees the detached Gurney style flaps torturously twisted back on themselves.
Detail: An extreme close up of the chimney-style engine cover outlet being used by Mercedes.
Detail: A close up of the higher downforce rear wing mounted on the Mercedes W09. Also note the Gurney tab on the trailing edge of the T-Wing, which helps to grab a little more downforce.
Detail: A nice view of the most recent bargeboard configuration to be run by Haas.

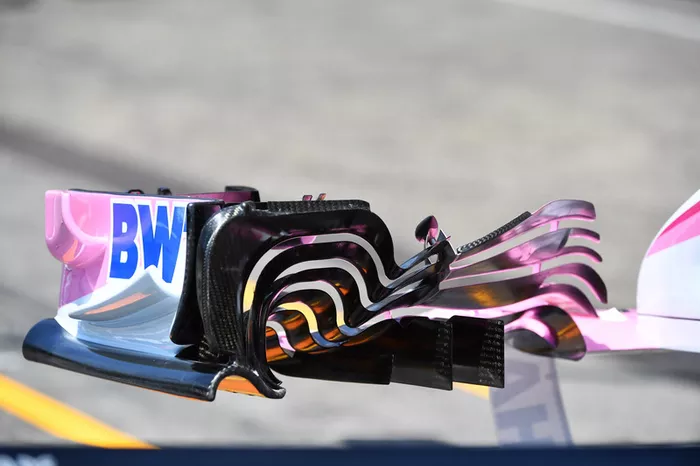

Detail: A magnificent view of the Force India VJM11’s front wing from behind, which shows how the shaping of the outboard section of the flaps would influence the airflow.
Detail: An interesting view of the fully-enclosed holes utilised in Ferrari's floor, which were updated at Silverstone.

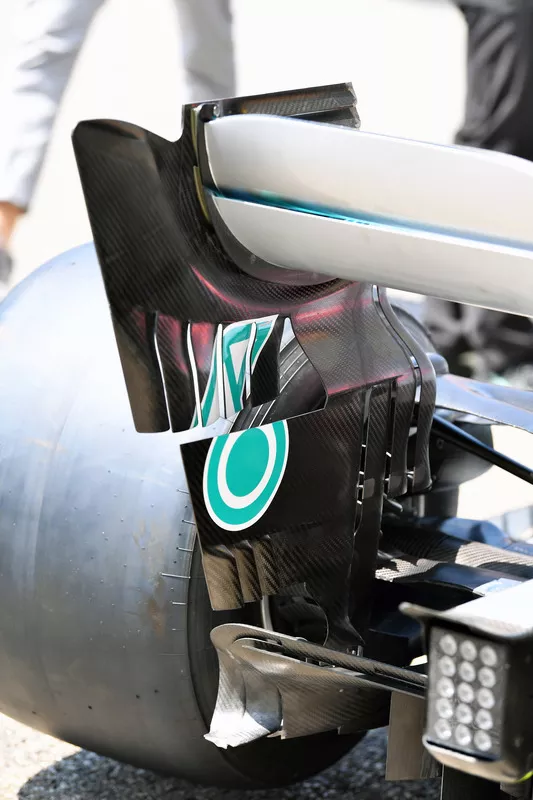

Detail: A great shot of the Mercedes W09 rear wing endplates which it introduced in Austria, that clearly takes inspiration from a design used by McLaren since last season.
