German GP: Fresh F1 tech updates, direct from the garages

Giorgio Piola and Sutton Images showcase the latest Formula 1 technical developments and details on show in the Hockenheim pitlane at the German Grand Prix.

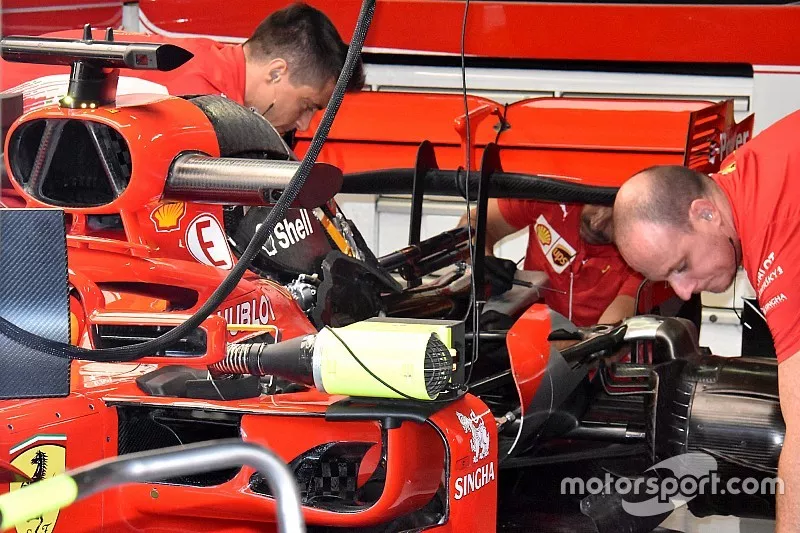

Ferrari SF71H engine view

Ferrari SF71H engine view

Giorgio Piola

Ferrari SF71H engine view

Ferrari SF71H engine view

Photo by: Giorgio Piola

Development: Tested by Sebastian Vettel during FP1, the new rear wing being trialled by Ferrari features an upturned leading edge at its centre and a shallower camber on the rear, in order to take advantage of the revised turbo wastegate pipework.

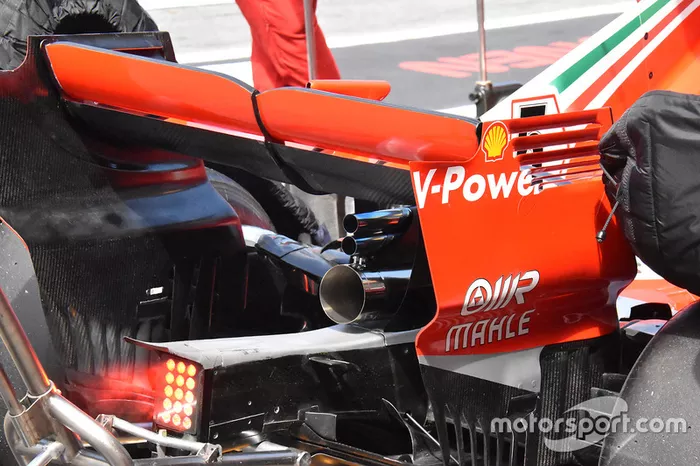

Ferrari SF71H rear

Ferrari SF71H rear

Photo by: Giorgio Piola

Development: The introduction of the new wing is a tandem development to a new wastegate position, which sees the two pipes inverted and placed on top of the main exhaust.

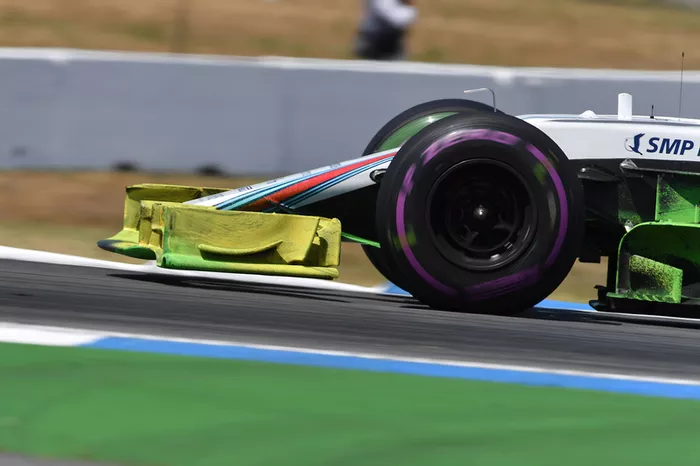

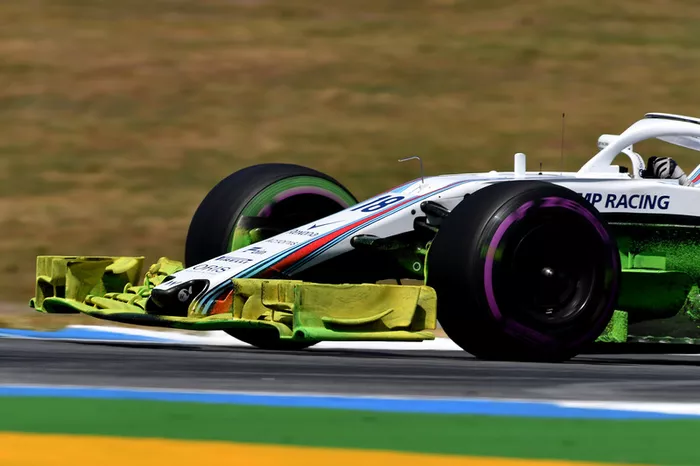

Lance Stroll, Williams FW41 with aero paint on front wing

Lance Stroll, Williams FW41 with aero paint on front wing

Photo by: Mark Sutton

Development: The new front wing being trialled by Williams this weekend with flo-visualisation paint applied in order to ascertain whether it’s working as anticipated.
Lance Stroll, Williams FW41 with aero paint on front wing

Lance Stroll, Williams FW41 with aero paint on front wing

Photo by: Mark Sutton

Development: A clearer shot of the new front wing’s endplate.

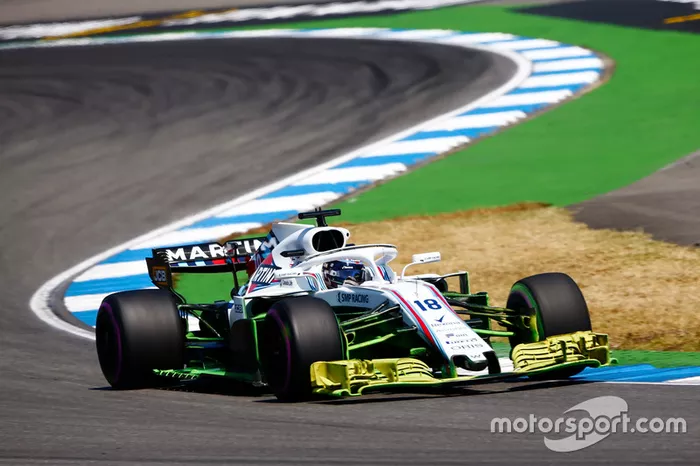

Lance Stroll, Williams FW41, drives with aero paint

Lance Stroll, Williams FW41, drives with aero paint

Photo by: Andrew Hone / Motorsport Images

Development: The flo-viz spreads onto other surfaces of the car and will give the designers further indications of how the new front wing interacts with other parts of the car, aerodynamically-speaking.
Red Bull Racing RB14 detail

Red Bull Racing RB14 detail

Photo by: Giorgio Piola

Development: A look at the new floor being run by Red Bull in Germany, which features two elongated slots that run parallel to the floor's edge.

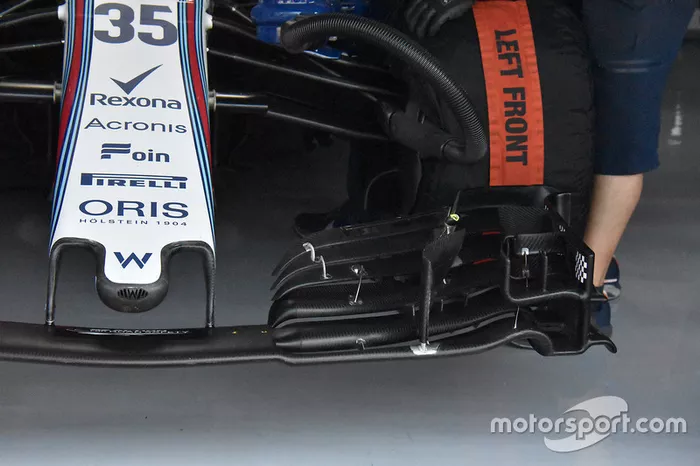

Williams FW41 front wing detail

Williams FW41 front wing detail

Photo by: Giorgio Piola

Development: The old-specification front wing was mounted on Sergey Sirotkin’s car during FP1. Note the chequerboard sticker on the endplate though, affixed here in order that a hi-speed camera mounted on the nose can detect the deflection as it circulates around a lap.

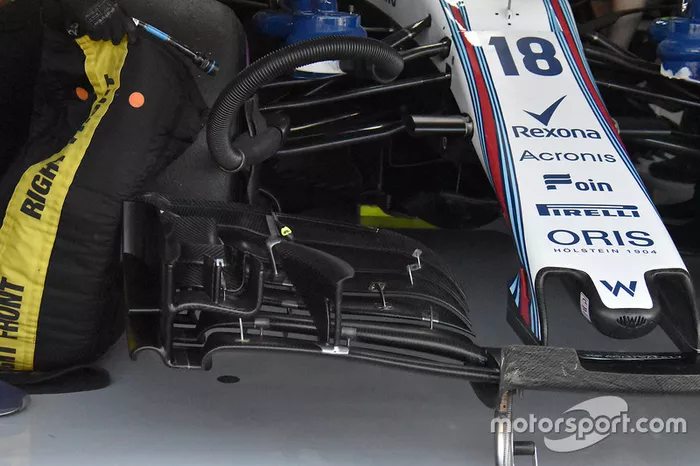

Williams FW41 front wing detail

Williams FW41 front wing detail

Photo by: Giorgio Piola

Development: Another view of the experimental, front wing being tested by Williams.

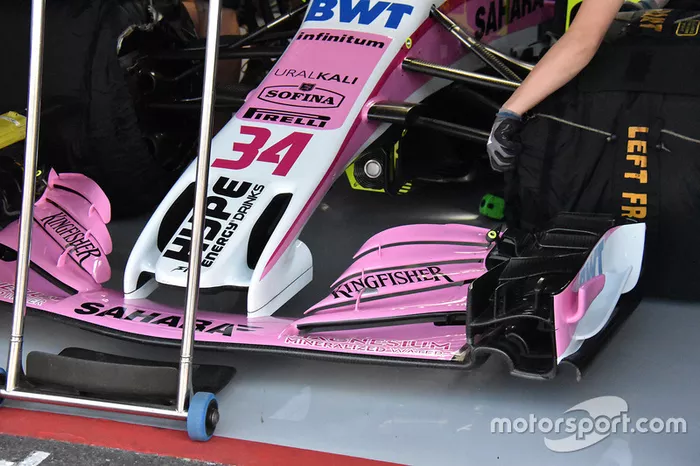

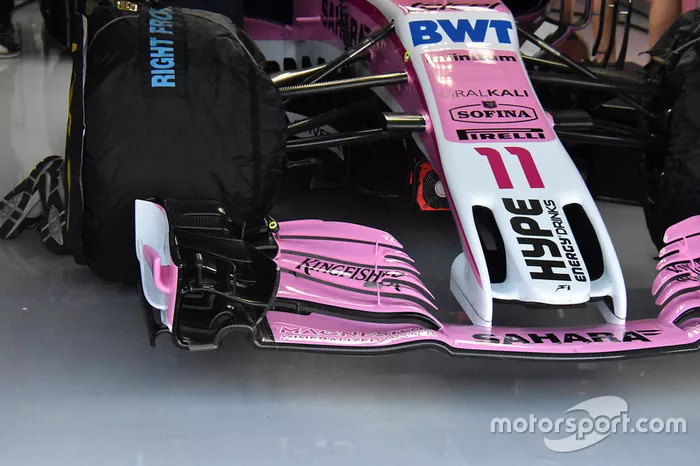

Force India VJM11 front wing detail

Force India VJM11 front wing detail

Photo by: Giorgio Piola

Evaluation: Force India conducting back-to-back testing with its old specification front wing, seen here.
Force India VJM11 front wing detail

Force India VJM11 front wing detail

Photo by: Giorgio Piola

Evaluation: Sergio Perez continued to run the newer specification wing, as the team continues to gather data on which works best with its setup at each circuit.
Stoffel Vandoorne, McLaren MCL33

Stoffel Vandoorne, McLaren MCL33

Photo by: Steven Tee / Motorsport Images

In detail: McLaren applied flo-viz paint on the MCL33’s rear wing in order to establish if it's working as anticipated.
Renault Sport F1 Team R.S. 18 brake detail

Renault Sport F1 Team R.S. 18 brake detail

Photo by: Giorgio Piola

In detail: A look at the Renault RS18’s front brake duct up close, and the window that’s opened up on the top of the drum to release heat generated by the brakes.
Mercedes-AMG F1 W09 front wing detail with aero paint

Mercedes-AMG F1 W09 front wing detail with aero paint

Photo by: Mark Sutton / Motorsport Images

In detail: Mercedes applied flo-viz paint to the W09’s front wing during FP1 as they evaluate the flow conditions in real life in order that they can check if the results in their simulation tools correlate.
Ferrari SF71H diffuser

Ferrari SF71H diffuser

Photo by: Giorgio Piola

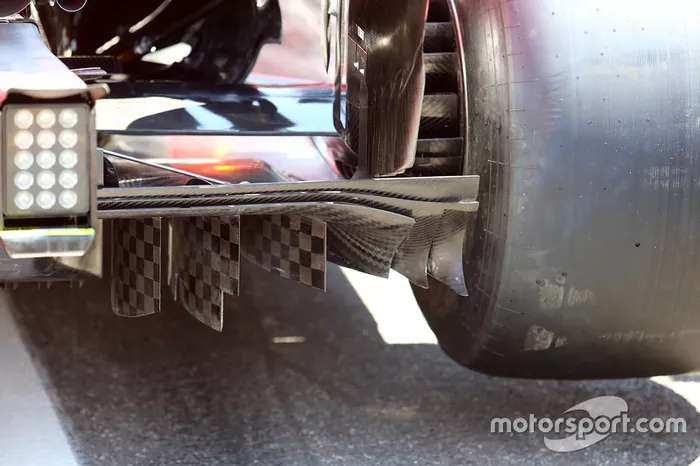

In detail: A look at the outer corner of the SF71H’s diffuser and perforated Gurney tabs.
Red Bull Racing RB14 detail

Red Bull Racing RB14 detail

Photo by: Giorgio Piola

In detail: A close-up view of the RB14’s bargeboard area and the various flaps, vanes and fins being employed.
Mercedes-AMG F1 W09 front suspension detail with aero paint

Mercedes-AMG F1 W09 front suspension detail with aero paint

Photo by: Mark Sutton / Motorsport Images

In detail: The flo-viz paint could also be found on Mercedes' front brake duct, as they check it’s operating as expected from an aerodynamic point of view.
