Emilia Romagna GP: Best F1 2021 technical images from Imola

Join us as we delve into the latest technical developments from the second round of the 2021 Formula 1 World Championship at Imola, courtesy of Giorgio Piola and Sutton Images.

Emilia Romagna GP: Best F1 2021 technical images from Imola

Click on the arrows on the images to scroll through them…

Damage of the car of Charles Leclerc, Ferrari SF21
Damage of the car of Charles Leclerc, Ferrari SF21
1/18
Charles Leclerc’s crash damage allowed us to get a great view of the underside of the Ferrari SF21’s front wing.

Photo by: Charles Coates / Motorsport Images

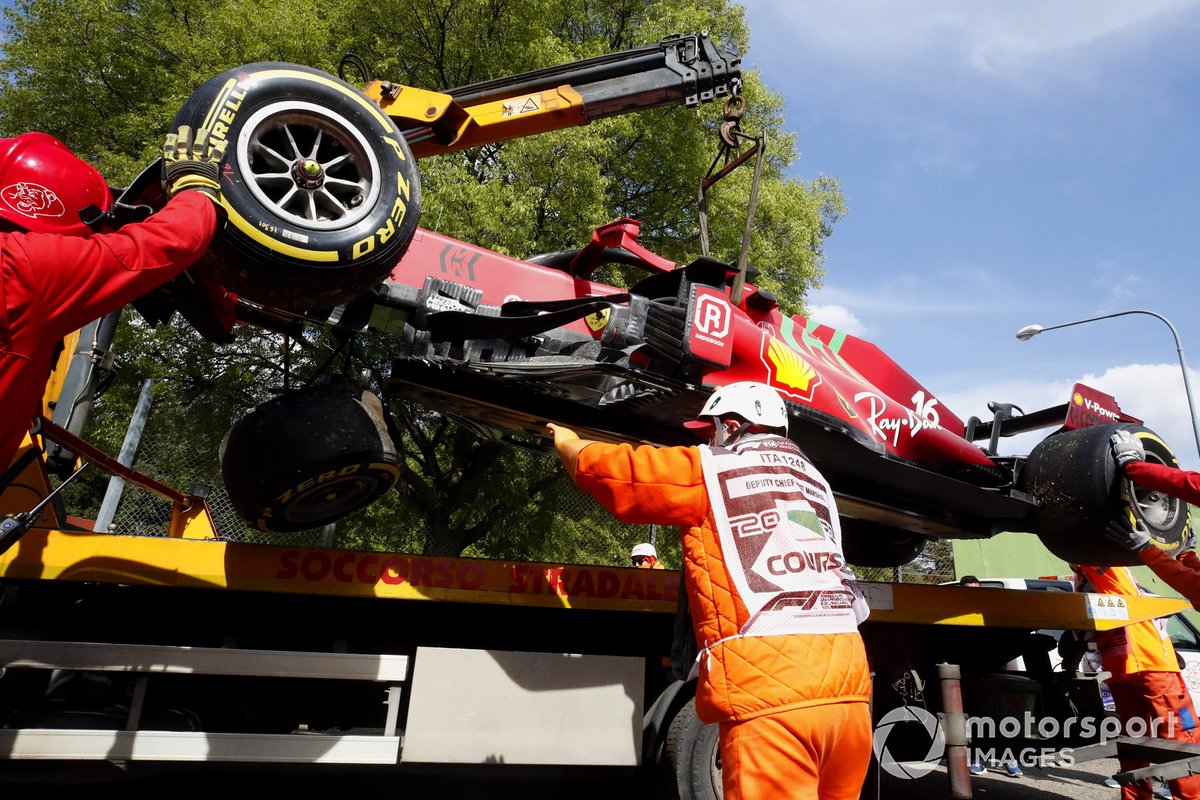

The car of Charles Leclerc, Ferrari SF21, is loaded onto a truck
The car of Charles Leclerc, Ferrari SF21, is loaded onto a truck
2/18
Detail of the SF21’s underside was also revealed as the car was hoisted onto the recovery truck.

Photo by: Charles Coates / Motorsport Images

McLaren MCL35M brake duct detail
McLaren MCL35M brake duct detail
3/18
McLaren’s front brake duct assembly has two new inlets amongst an array of fins this season that help feed airflow through the assembly for aerodynamic gain. It’s a similar arrangement to the one used by Mercedes last season but McLaren has now inverted its brake duct shape for a similar effect.

Photo by: Giorgio Piola

McLaren MCL35M front brake duct
McLaren MCL35M front brake duct
4/18
A shot of the MCL35M’s ‘cake tin’ shows how the team have placed various channels and outlets within its design to help magnify the aerodynamic effect it can have.

Photo by: McLaren

Ferrari SF21 floor detail
Ferrari SF21 floor detail
5/18
Ferrari trialled a new floor during Free Practice that featured the Z-Shaped cutout that some rivals have been using throughout the opening phase of the season. The cutout is paired with a new strake, while the trio of fins midway down the floor have been removed.

Photo by: Giorgio Piola

Mercedes W12 diffuser comparison
Mercedes W12 diffuser comparison
6/18
Mercedes made a modification to the diffuser for the second race of the season, altering the shape of one of the vertical stakes (highlighted in green). As you can see L-Shaped strake has been replaced by a full-length version.

Photo by: Giorgio Piola

Red Bull Racing RB16B rear detail
Red Bull Racing RB16B rear detail
7/18
A great shot of the Red Bull RB16’s diffuser as it is hoisted onto the recovery truck following the driveshaft failure that befell Max Verstappen.

Photo by: motosport.com

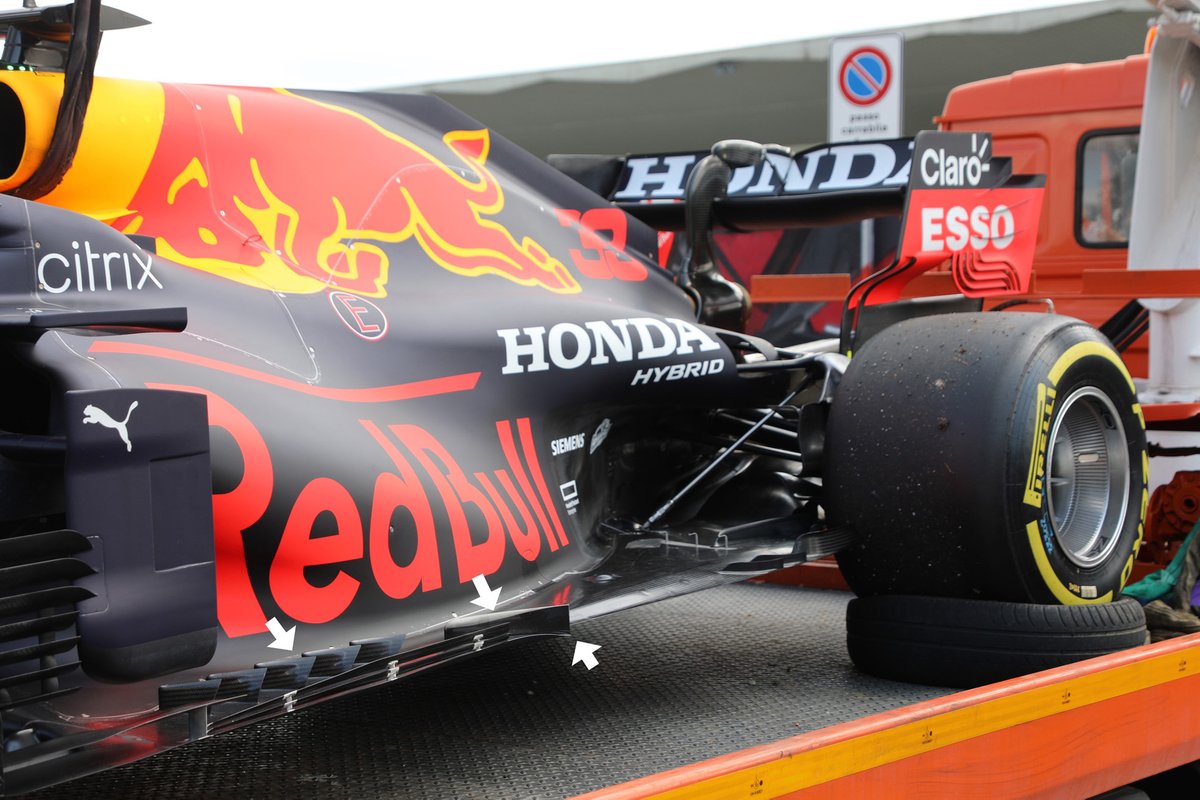

Red Bull Racing RB16B floor detail
Red Bull Racing RB16B floor detail
8/18
Highlighting the cluster of fins used by Red Bull on the RB16B to coerce the airflow outboard.

Photo by: Giorgio Piola

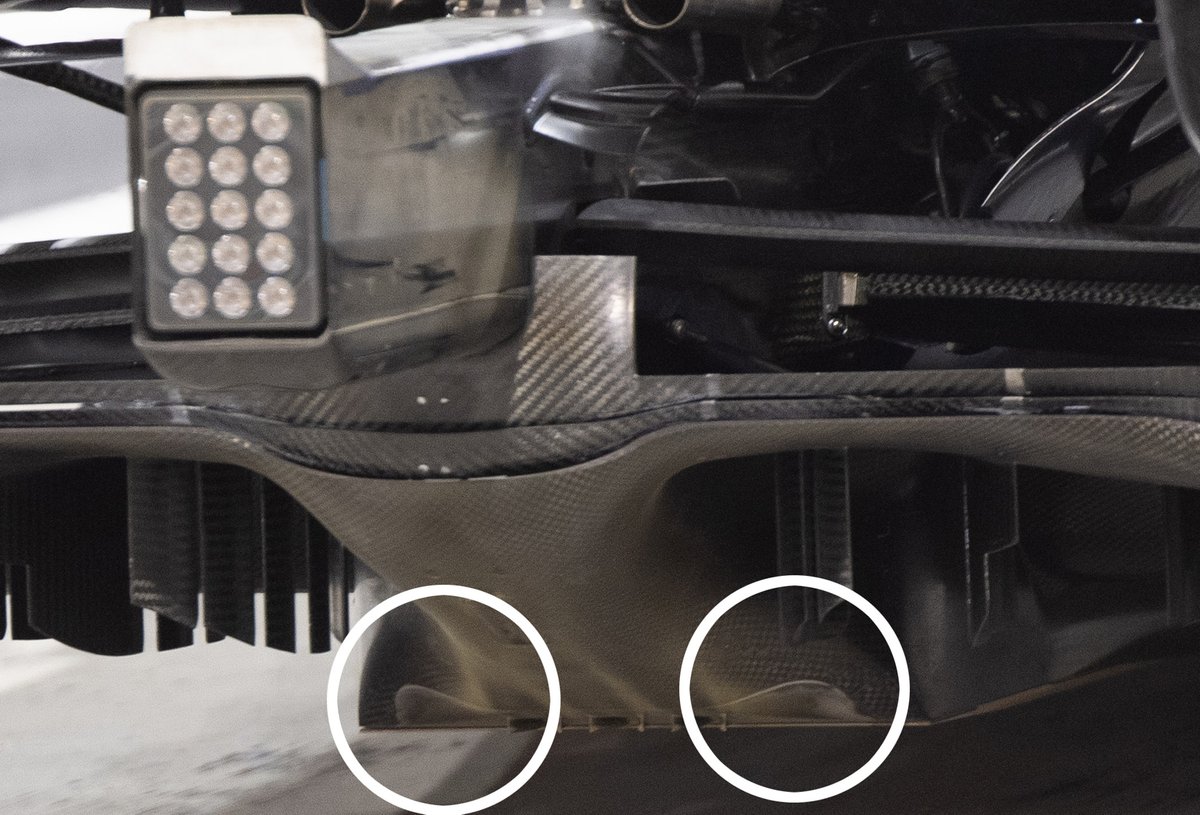

Mercedes F1 W12 diffuser detail
Mercedes F1 W12 diffuser detail
9/18
This is not new but an interesting detail is the surface treatment in the transition zone on the Mercedes W12’s diffuser.

Photo by: Giorgio Piola

Daniel Ricciardo, McLaren MCL35M
Daniel Ricciardo, McLaren MCL35M
10/18
A good overview of the McLaren MCL35M and the various surfaces that go to make up the bargeboard cluster.

Photo by: Steven Tee / Motorsport Images

Sebastian Vettel, Aston Martin AMR21
Sebastian Vettel, Aston Martin AMR21
11/18
Flo-viz painted on the spoon-shaped rear wing of the Aston Martin AMR21 as the team checked to make sure the new design is providing the performance expected of it.

Photo by: Mark Sutton / Motorsport Images

Valtteri Bottas & Lewis Hamilton, Mercedes W12
Valtteri Bottas & Lewis Hamilton, Mercedes W12
12/18
Mercedes testing out different rear wing configurations, as Bottas has the twin pillar arrangement while Hamilton has the single pillar.

Photo by: Mark Sutton / Motorsport Images

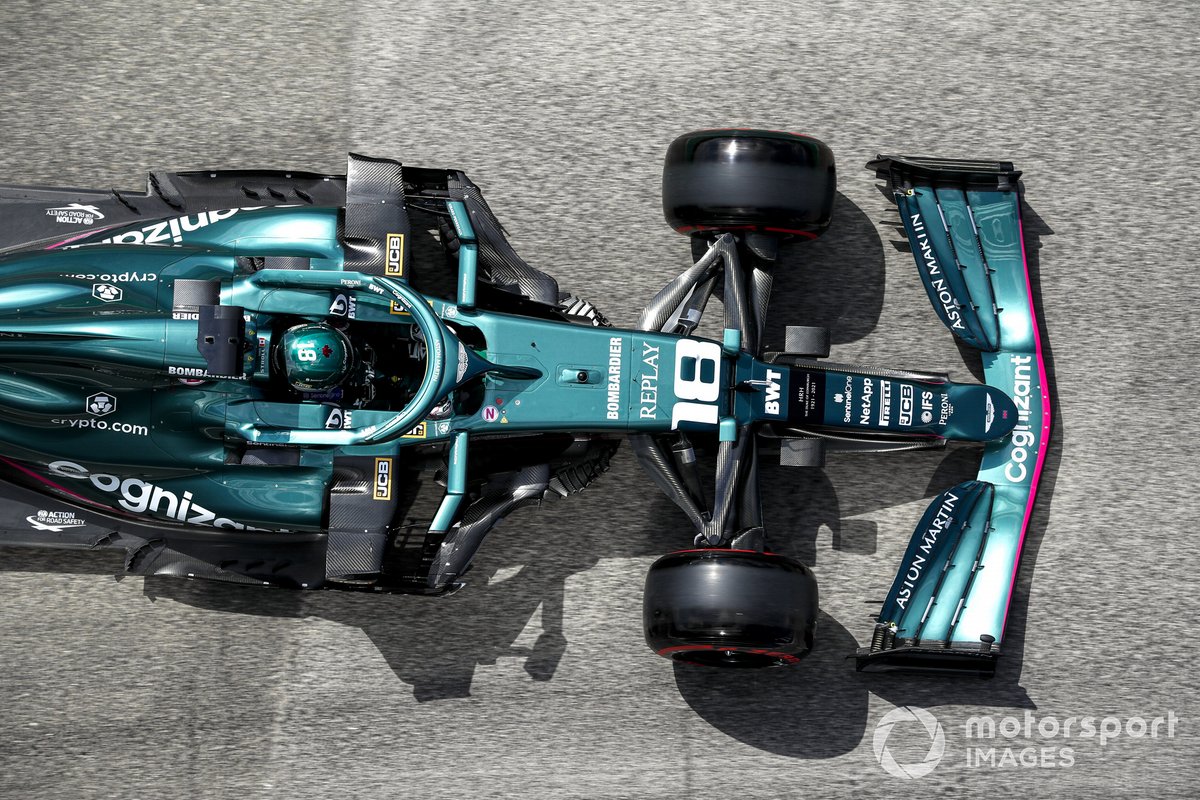

Lance Stroll, Aston Martin AMR21
Lance Stroll, Aston Martin AMR21
13/18
The aerial view of the Aston Martin AMR21 shows just how much of the floor the team has cut away in order to alter the angle of the floor. You’ll also note the floor is contoured to further invoke the aerodynamic effect it’s looking for.

Photo by: Charles Coates / Motorsport Images

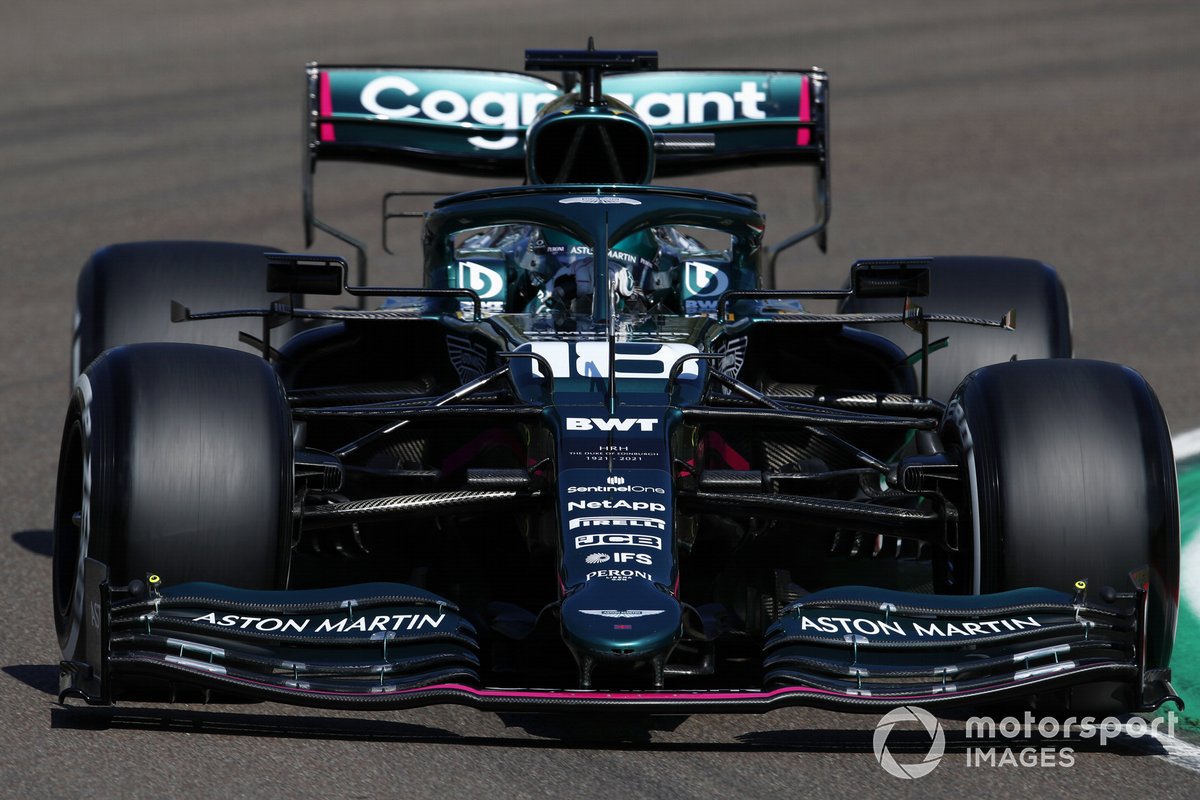

Lance Stroll, Aston Martin AMR21
Lance Stroll, Aston Martin AMR21
14/18
Aston Martin has new sidepod bodywork and new wing mirrors stalks for the AMR21 at Imola, as it looks to reduce the size of the inlets and improve aerodynamic performance.

Photo by: Zak Mauger / Motorsport Images

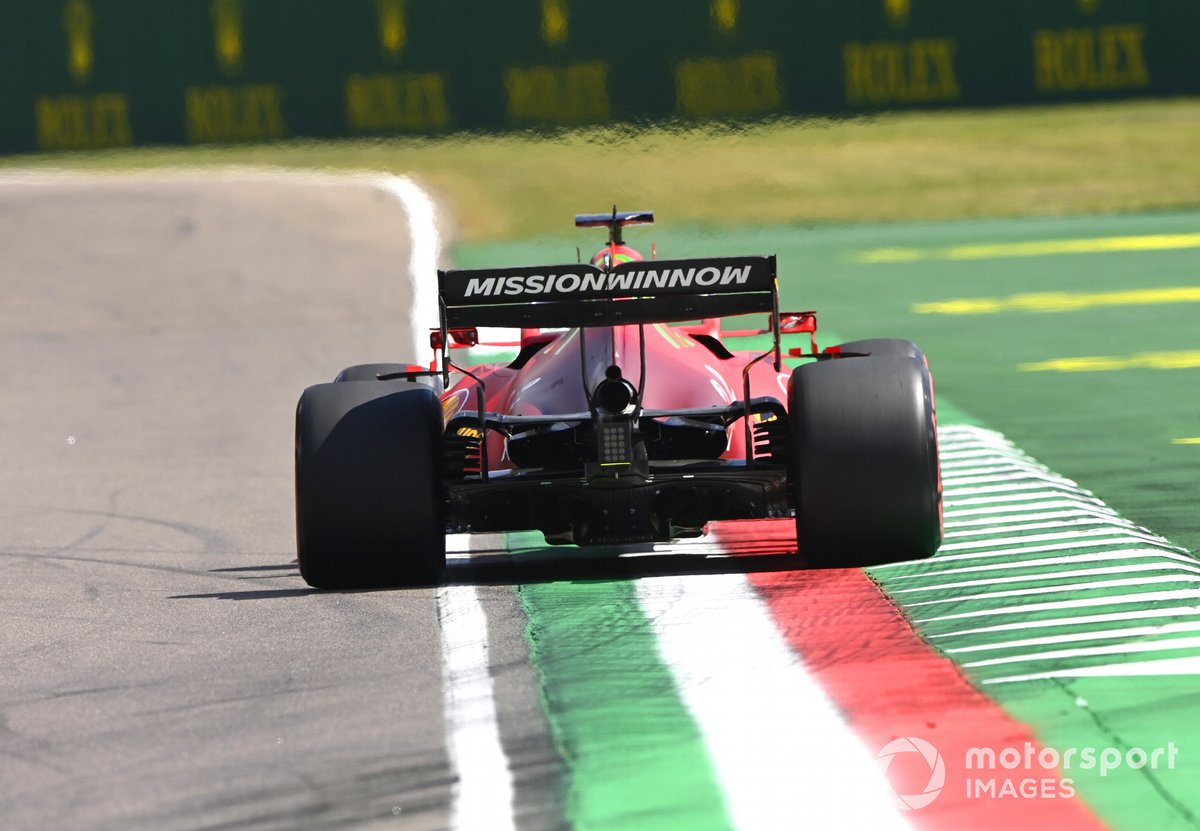

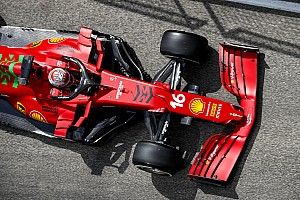

Charles Leclerc, Ferrari SF21
Charles Leclerc, Ferrari SF21
15/18
Much smaller rear cooling outlets on the Ferrari SF21 than it was forced to run in Bahrain.

Photo by: Mark Sutton / Motorsport Images

Daniel Ricciardo, McLaren MCL35M
Daniel Ricciardo, McLaren MCL35M
16/18
Flo-viz paint on the rear corner of the McLaren as the team looks to collect visual confirmation that the new parts in this region are performing as anticipated.

Photo by: Mark Sutton / Motorsport Images

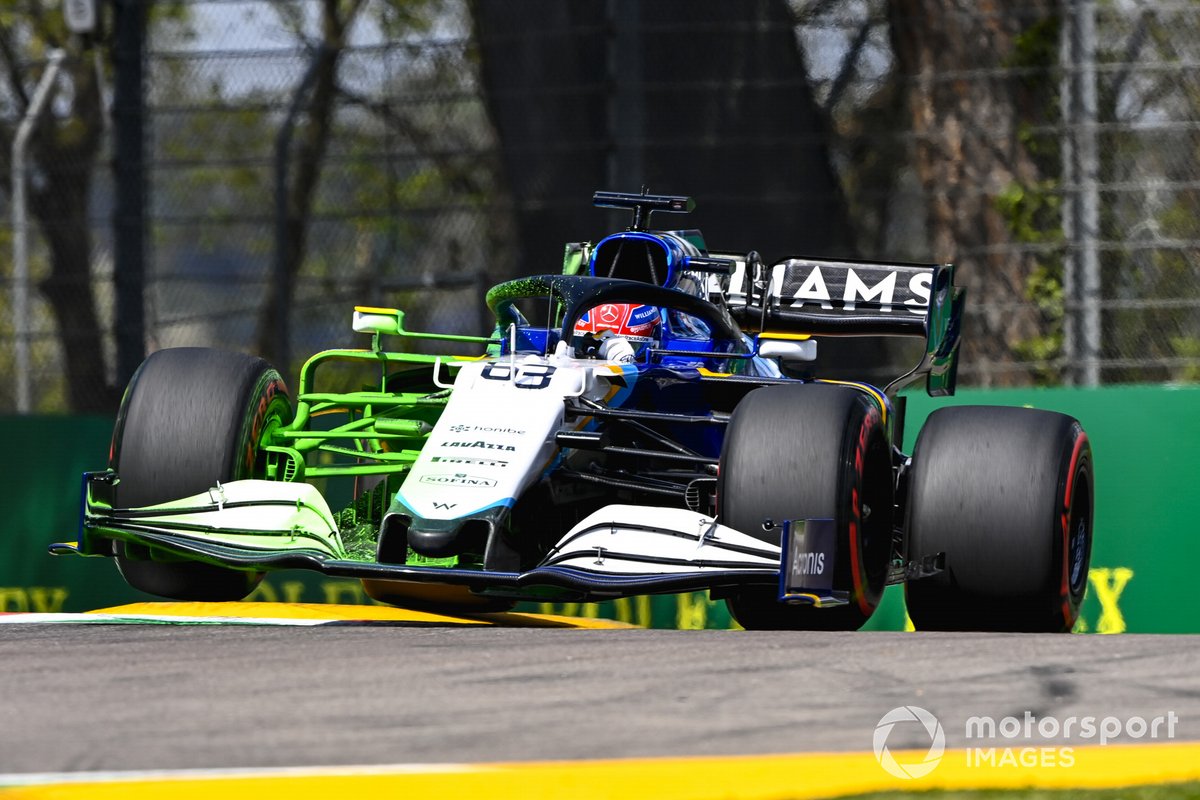

George Russell, Williams FW43B
George Russell, Williams FW43B
17/18
Flo-viz painted on the front end of the Williams FW43B will help the team identify any issues with their correlation between their simulation tools and the real-world environment, while also capturing information regarding their new front wing setup.

Photo by: Mark Sutton / Motorsport Images

Max Verstappen, Red Bull Racing RB16B, leaves the garage
Max Verstappen, Red Bull Racing RB16B, leaves the garage
18/18
Aerial view of the Red Bull RB16B shows how narrow the bodywork is and also highlights the fins mounted on the floor beside the bellies of the sidepods.

Photo by: Steven Tee / Motorsport Images
