Formula 1 Belgian GP

Racing Point reveals all-new nose design for Spa

Racing Point has overhauled its distinctive front-end design for a more conventional nose ahead of the Belgian Grand Prix, abandoning its previous nostril design.

Jake Boxall-Legge

Jake Boxall-Legge

Published: Aug 29, 2019, 7:48 PM

Copy link

Share on Facebook

Share on Twitter

Share on WhatsApp

Share on Linkedin

Share on Pinterest

Share on Viber

Add as a preferred source

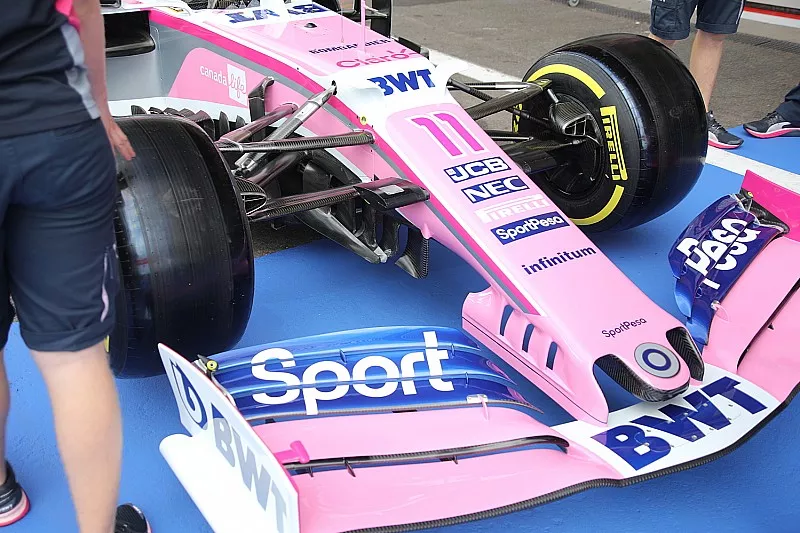

Racing Point RP19, front

Giorgio Piola's F1 technical analysis

Giorgio Piola is the preeminent Formula 1 technical journalist. View our full selection of Giorgio's technical illustrative content

In its former Force India guise, the team pioneered a distinctive nostril design in the nose to improve airflow underneath the chassis. This was first seen on the B-spec version of the 2015 car, and has been carried forward in varying configurations in the intervening years.

Now, the team has decided to drop the nostrils for a front end more consistent with those already on the grid, retaining the extended ‘thumb tip’ crash structure. This pairs up with a new pair of mounting pylons featuring three slots fitting into a small ridge, not dissimilar to Ferrari’s current pylon design.

Read Also:

The new nose is not the first change in concept that Racing Point has run with in 2019, having debuted a different design in Canada, in which the bottom bounding of each ‘nostril’ was moved further up to accommodate a cape section underneath. However, the newest concept dispenses with the cape, suggesting that it benefits from a reduced level of lift following the nostrils’ disappearance.

Racing Point RP19 front detail

Racing Point RP19 front detail

Photo by: Giorgio Piola

There are further front-end changes to the RP19 this weekend, and the team has added a pair of fins further up the nose (above). Attached to the forwardmost point of the chassis bulkhead, these fins promote a small degree of downwash, assisting with airflow management as the nose transitions into the chassis.

These seem to bring airflow over the top of pushrod pick-up points, sending it down towards the bargeboards.

Further front-end changes at Belgium included Red Bull (below), which has once more brought back the nose configuration it used in Monaco. This dispensed with the snorkel concept which, similarly to Racing Point’s nostrils, assisted with bringing airflow underneath the car.

Red Bull Racing RB15, front wing detail

Red Bull Racing RB15, front wing detail

Photo by: Giorgio Piola
