Can Sauber’s new-look F1 challenger keep it off the back row?
Sauber’s Stake-backed Formula 1 team revealed a suite of changes on its new C44 challenger over its predecessor at its launch on Monday.
Giorgio Piola's F1 technical analysis
Giorgio Piola is the preeminent Formula 1 technical journalist. View our full selection of Giorgio's technical illustrative content
Heading that list is a major change at the front of the car, as it sports a pull-rod suspension arrangement this year, rather than a push-rod system.
Both Red Bull and McLaren made that switch at the beginning of this regulation cycle two years ago, so it’s not groundbreaking in any way, but it does suggest there’s a tangible benefit for having the layout, given the upheaval required to make the change.
The repackaging of the inboard suspension elements will result in their weight being placed lower in chassis which makes life a little trickier in terms of making setup changes. But, as always, it’s the aerodynamic benefits that have likely tilted the balance in terms of making the shift.
Stake F1 C44 Roll Over & Airbox
Photo by: Sauber F1 Team
The biggest departure actually comes in the form of its roll hoop and airbox arrangement, as the team has overhauled the design completely when compared with its last eight machines.
Six of these cars featured a variant of the blade-style rollover hoop with the airbox segmented around its spine, whilst the C39 and C41 utilised a triangular roll hoop and a hood behind the main assembly.
The changes made to the regulations for 2024 have obviously contributed to this change and are the result of ongoing improvements made by the FIA to increase safety. These changes were made in light of the incident involving Zhou Guanyu at the British Grand Prix in 2022, where the roll hoop failed after his car was flipped over.

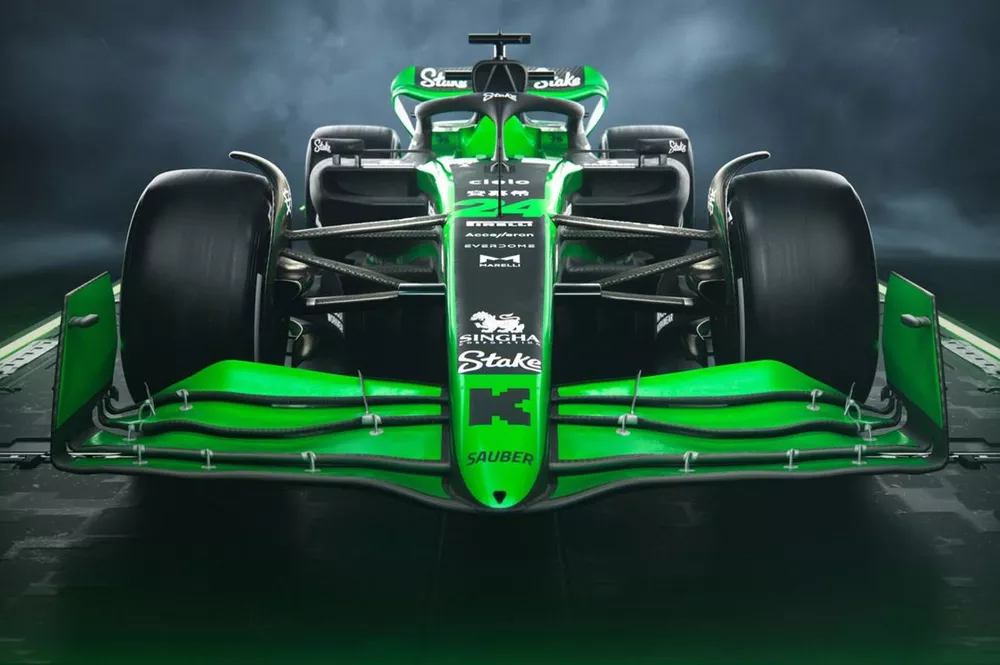

Sauber C44
Photo by: Sauber F1 Team
Sauber had already made the switch to a downwash ramp-style sidepod solution for 2023 but it has upped the ante for this season, not only optimising the shape of the bodywork but also incorporating a feature that will no doubt be seen up and down the pitlane this season and originated on the RB18, before being developed further.
In this case, it’s resulted in an elongated lip for the lower leading edge of the sidepod bodywork inlet that tapers to the shoulder section, which creates a wide but shallow inlet.
This also changes the profile of the undercut, with much more space afforded beneath the inlet that can be shaped to optimise the airflow’s trajectory and opens avenues in terms of development for both it and the floor alongside.
The upper surface of the sidepod has also been a focus of the team's attention, with the shoulder extended along the entire flank, creating a subtle gully that will deliver the airflow to the rear of the car and into the coke bottle region.
Stake F1 C44 Sidepods and floor edge
Photo by: Sauber F1 Team
The engine cover bodywork is similar to the one used at the back end of last season, with a shelf-like shoulder in operation to help divide the passage of flow to the upper portion of the car, while the rear cooling outlet remains downwardly angled.
The edge wing already looks different from the specification that the team used to close out last season, as the forward section now sports the swept profile which is divisible by three strakes that we’ve seen variants of on rivals’ cars throughout 2023.
Stake F1 C44 Front Wing
Photo by: Sauber F1 Team
Returning to the front of the car, the C44 has a similar nose and front wing arrangement to that developed throughout the course of 2023.
But a small detail that’s found on the renders, that wasn’t present on the car presented in the studio, can be found in the lower rear quarter of the endplate, as a crooked finger-like winglet protrudes out from where a cutout previously existed.
This is similar, in some respects, to the winglets posted in this position by the likes of Mercedes, Haas, Red Bull and Ferrari last season, albeit with a geometry that’s more tailored to its given surroundings.
In each of these cases these winglets are permissible due to their position within the given volumes posed by the regulations but their existence was not intended as they’ll undoubtedly work in conjunction with the other surfaces in the endplate and wing junction to improve the outwash being generated by the wing.
Stake F1 C44 Rear Wing
Photo by: Sauber F1 Team
The rear wing is also very much a carryover from last year’s challenger at this stage too, with an honourable mention for the re-inclusion of the endplate swage line that the team introduced at the Qatar Grand Prix last season.
