Tuscan GP: Latest key F1 technical developments

Join us as we delve into the latest technical developments on display at the Tuscan Grand Prix at Mugello, courtesy of Giorgio Piola and Motorsport Images.

Tuscan GP: Latest key F1 technical developments

Click on the arrows on the images to scroll through them…

AlphaTauri AT01 front wing footplate detail
AlphaTauri AT01 front wing footplate detail
1/22
A new front wing design is the reward AlphaTauri has allowed itself after the win at Monza. It features an enclosed section at the rear of the footplate that delivers airflow inboard, as the team finds a way around the intent of the regulations that look to prohibit such designs.

Photo by: Giorgio Piola

Red Bull Racing RB16 floor detail
Red Bull Racing RB16 floor detail
2/22
This gives a view of an area of the car we rarely see exposed as the bargeboards aren’t attached to the car. We can see that on the leading edge of the RB16’s floor, Red Bull created a step, with the outer section pushed back from the inner section, while the twisted the strakes on the leading edge not only frame each section but also work to capture the airflow and redirect it. This angle also shows just how narrow the sidepod is in the lower section, with a massive undercut allowing the air passage to the rear of the car. The twisted fins on top of the floor direct the airflow out through the fully enclosed hole that runs parallel with the edge of the floor raised slightly to allow more air to flow through.

Photo by: Giorgio Piola

Haas team member works on brakes
Haas team member works on brakes
3/22
A great shot of the brake disc and bell as the mechanic prepares the VF20 for action. Note how the bell is designed to take advantage of cooling, with heat generated by the disc passed through the 1200 or so holes drilled through it given passage at the inboard end.

Photo by: Andy Hone / Motorsport Images

Ferrari SF1000 of Sebastian Vettel
Ferrari SF1000 of Sebastian Vettel
4/22
A top down view of the SF1000’s front end shows the shapes and contours of various surfaces, such as the suspension fairings, which are designed to improve aerodynamic performance.

Photo by: Charles Coates / Motorsport Images

AlphaTauri AT01 sidepods detail
AlphaTauri AT01 sidepods detail
5/22
The bargeboard region on the race-winning AT01, which features a large boomerang winglet to shadow the footplate elements below. Note the various slots carved into its surface to mirror those below too.

Photo by: Giorgio Piola

Bargeboard detail on Alfa Romeo Racing C39
Bargeboard detail on Alfa Romeo Racing C39
6/22
The bargeboard region on the Alfa Romeo C39 shows how teams have shuffled the development focus they once had on their front wings to the bargeboard region. It’s now an extremely complex and sensitive region of the car, with multiple tiers required on every surface to make them all work in unison.

Photo by: Mark Sutton / Motorsport Images

Engine covers, seats and bodywork of Mercedes F1 W11
Engine covers, seats and bodywork of Mercedes F1 W11
7/22
Top down overview of the sidepod and engine cover bodywork of the W11 ready to be fitted to the Mercedes cars. Note how tight the cover is where the exhaust would ordinarily protrude out of the rear and how, just ahead of this, large blisters (where the drivers numbers are) have to be made in the surface in order to fit everything beneath the bodywork.

Photo by: Charles Coates / Motorsport Images

Ferrari SF1000 front wing detail
Ferrari SF1000 front wing detail
8/22
This shot of Ferrari’s nose shows us the cape and turning vanes, both of which should work together to feed airflow back down the car.

Photo by: Giorgio Piola

Red Bull Racing pitstop simulator
Red Bull Racing pitstop simulator
9/22
Ever wondered how Red Bull is so quick with its pitstops? Well, here’s a trick in its arsenal, as it uses this to simulate a stop and tune the wheel guns.

Photo by: Giorgio Piola

Red Bull Racing pitstop simulator
Red Bull Racing pitstop simulator
10/22
Another shot of the box of tricks which essentially has two stub axles mounted within it and dummy wheel rims attached to the wheelnuts, as seen in the mechanic’s hand.

Photo by: Giorgio Piola

Renault R.S.20 sidepods detail
Renault R.S.20 sidepods detail
11/22
The bargeboard region on the Renault RS20 with its various hedgehog-like fins which are critical in controlling the direction of the airflow.

Photo by: Giorgio Piola

Red Bull Racing RB16 detail
Red Bull Racing RB16 detail
12/22
Top down overview of the Red Bull RB16 shows just how tightly packaged the rear end of the car is with a huge amount of the floor visible from above.

Photo by: Giorgio Piola

McLaren MCL35 sidepods detail
McLaren MCL35 sidepods detail
13/22
Carlos Sainz’s McLaren once again outfitted with the venetian blind-like sidepod deflectors tested in Spa and raced by him at Monza.

Photo by: Giorgio Piola

McLaren MCL35 sidepods detail
McLaren MCL35 sidepods detail
14/22
As Norris’ car is pushed down the pitlane his MCL35 still doesn’t have the newer sidepod deflector panels at this stage.

Photo by: Giorgio Piola

Alfa Romeo Racing front wing
Alfa Romeo Racing front wing
15/22
The Alfa Romeo’s front wing is taken down the pitlane to scrutineering giving us a great view of it and the shapes that the flaps are contorted into to maximise their surface area and provide a boost to the Y250 region. It is missing the thermal imaging pods that are usually hung from the endplate too.

Photo by: Mark Sutton / Motorsport Images

Racing Point front wing
Racing Point front wing
16/22
A similar view of the Racing Point RP20 front wing gives us a clear indication of how teams have differing approaches to their designs

Photo by: Mark Sutton / Motorsport Images

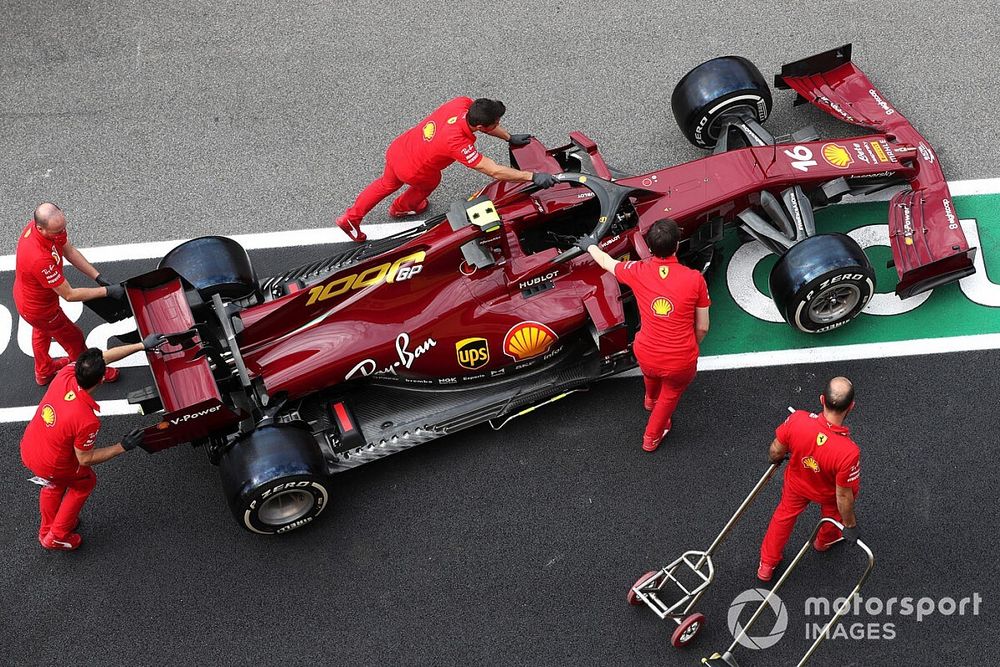

Mechanics push the Charles Leclerc Ferrari SF1000
Mechanics push the Charles Leclerc Ferrari SF1000
17/22
Top down overview of the Ferrari SF1000 as it is pushed around the pitlane by the mechanics. Note the boxes on the floor of the car which are used to protect pitot tubes that are housed in the floor and will collect extra during FP1 tomorrow. The boxes are used to prevent any accidental damage occurring.

Photo by: Charles Coates / Motorsport Images

Red Bull Racing mechanics change a rear tyre during a practise pit stop
Red Bull Racing mechanics change a rear tyre during a practise pit stop
18/22
Practice pitstops at Red Bull reveal an interesting finish on the rear brake drum, which is likely being used to offer a thermal barrier.

Photo by: Mark Sutton / Motorsport Images

Red Bull Racing RB16 rear wing detail
Red Bull Racing RB16 rear wing detail
19/22
Focus on the central portion of the car shows how the wastegate pipes fan out across the top of the main exhaust outlet.

Photo by: Mark Sutton / Motorsport Images

Red Bull Racing RB16 floor
Red Bull Racing RB16 floor
20/22
Ahead of the rear tyre, Red Bull has four diagonal slots and two longitudinal fully enclosed holes as it searches for a way of improving the diffuser’s performance, as without these solutions more airflow would be pushed laterally into the diffuser’s path.

Photo by: Mark Sutton / Motorsport Images

Haas VF-20 in the pit lane
Haas VF-20 in the pit lane
21/22
A high-downforce rear wing and looped double element T-Wing on the Haas this weekend.

Photo by: Andy Hone / Motorsport Images

Charles Leclerc Ferrari SF1000
Charles Leclerc Ferrari SF1000
22/22
A fantastic overview of the SF1000 in its revised livery to celebrate the team’s 1000th race in Formula 1. It affords us a great view of the bargeboard region, which Ferrari is still using the slotted splitter extensions on the reference plane.

Photo by: Charles Coates / Motorsport Images
