Red Bull may have found the source of its RB20 problems
Red Bull has offered some clues about what could be behind the balance problems with its RB20 Formula 1 car
Matt Somerfield Jonathan Noble
Edited: Sep 6, 2024, 5:02 PM
Copy link
Share on Viber

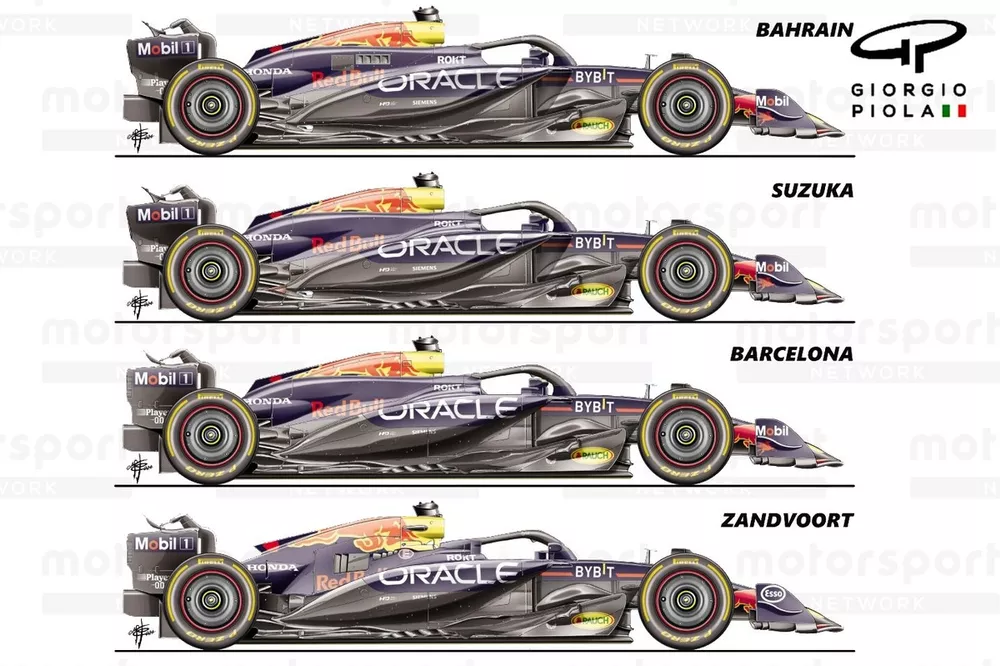

Red Bull RB20 side comparison
Photo by: Giorgio Piola
Giorgio Piola's F1 technical analysis
Giorgio Piola is the preeminent Formula 1 technical journalist. View our full selection of Giorgio's technical illustrative content
Red Bull is pretty open that it needs to quickly turn around the performance of its RB20 if it is not going to lose both Formula 1 championships this year.
But saying what it wants is one thing, doing it is another – especially because it does not yet have a clear explanation on what has gone wrong.
We can forget wild conspiracy theories about the FIA asking for devices to be removed from its car. Instead, Red Bull’s problems are all of its own making.
While not definitive yet about what has happened, there was a fascinating hint from team boss Christian Horner after the Italian GP about a potential trigger for its woes.
Speaking about the balance problems that are hurting the car, Horner said: “It's disconnected front and rear. We can see that.
“Our wind tunnel doesn't say that, but the track says that. So it's getting on top of that, because obviously when you have that, it means you can't trust your tools. Then you have to go back to track data and previous experience.”
So could a wind tunnel problem – something that may only have come to light in recent weeks – be the smoking gun behind its troubles?
Max Verstappen, Red Bull Racing RB20
Photo by: Red Bull Content Pool
In a bid to find out, let’s try and unravel where it all went wrong for the team and take a look at how it has been attempting to sort things out.
In terms of results and car behaviour, it seems that the Miami Grand Prix was the turning point. This was not only the case for Red Bull, but also those chasing it, as McLaren unveiled its first big update of the season, which catapulted it to victory and gave it a much more usable platform at each event.
Meanwhile, Mercedes joined the fray following its own larger update package that arrived in Monaco.
Ferrari was in and around the front of the pack until around this time too, before its troubles in Canada and then the difficulties caused by the return of high-speed bouncing from its Spanish GP floor. This was another example of a team finding out its simulation tools were saying one thing and the real car saying another.
Red Bull has obviously become aware of the possibility of a wind tunnel correlation issue and, over the course of the last few races, has been testing out numerous parts from its update archive in order to find a benign solution that did not sacrifice too much performance.
Allied to working through its issues, Red Bull has also been trying to improve the RB20 – which has resulted in an almost relentless development programme with updates introduced at every race apart from Austria and Belgium.
Glancing through the timeline of updates since Miami, we can see how much of the RB20 has been changed during that period, and how much of its programme has been split between its long-term goals and short-term aims.
Red Bull RB20 front wing comparison
Photo by: Uncredited
Race
Reason for update
Part
Explanation
Miami
Performance
Edge wing support brackets
Removed metal support for the edge wing (weight/flex)
Imola
Performance
Front wing
Endplate shape, chord length of all flaps, inboard sections beside nose.
Performance
Nose
To match aforementioned front wing changes. Also renewed camera mounting positions
Performance
Floor and Edge wing
Upper floor section ahead of the edge wing optimised, whilst shedding strakes in the edge repositioned in the scrolled section
Circuit specific
Rear brake duct
Reprofiled the exit duct geometry for a given
Intake, which allied the adjacent winglets to be optimised
Monaco
Circuit specific
Front brake duct
Inlet enlarged to cater for the low speed conditions
Circuit specific
Top wishbone fairing
Notch made in fairing to allow for additional steering lock
Circuit specific
Beam and rear wings
Increased downforce configuration
Canada
Circuit specific
Front brake duct
Enlarged cooling exit - wider and taller
Circuit specific
Rear wing
New flap geometry for the given downforce level
Red Bull RB20 sidepod bodywork & inlet comparison
Photo by: Uncredited
Race
Reason for update
Part
Explanation
Spain
Performance
Sidepods
Bodywork and inlet size and shape altered to give more range for the upcoming races.
Performance
Floor
Geometry alongside the sidepod altered to work in unison with one another.
Performance
Beam and rear wing
Lower quarter of the endplates widened to take up more space in the allowable box region, with the beam wing widened as a consequence.
Austria
N/A
N/A
No updates
Great Britain
Performance
Floor and edge wing
Reprofiling of the floor around the SIS housing, with the edge wing altered to take advantage.
Race
Reason for update
Part
Explanation
Hungary
Performance
Front wing
All four flaps reconfigured to increase load
Performance
Lower wishbone fairing
In conjunction with the revised front wing, the wishbone fairing has been altered to improve flow downstream.
Performance
Engine cover and Halo
Tighter engine cover, without the high shoulders, which also required new upper inlets beneath the airbox to accommodate for their loss between the halo and airbox. Halo fairings also adjusted to accommodate for the change in engine cover bodywork.
Performance
Rear brake duct
Change to the end fence geometry to improve flow into and around the assembly.
Belgium
N/A
N/A
No updates
Netherlands
Performance
Halo winglets and wing mirror stays
The aerodynamic furniture surrounding structures is often used as a means to further influence flow downstream and thus need to be changed inline with other changes that occurred a few races earlier.
Circuit specific
Rear cooling outlet
Smaller rear cooling bodywork for the tighter engine cover introduced at the Hungarian Grand Prix.
Race
Reason for update
Part
Explanation
Italy
Circuit specific
Front wing
Shorter chord flaps to reduce drag
Circuit specific
Rear wing
Trimmed trailing edge of the upper flap to reduce drag
The scale of changes makes it clear that, if it is one component that has triggered its wrong turn, it is going to be quite hard to work out what it is.
For Red Bull, this appears to be new territory too, as it has not really faced the issues that its rivals have in the past three seasons. Its development hit rate has always been relatively good, yielding approximately what was expected.
This means that now, not only does it have to learn how to deal with the current issue, but it also needs to understand why it happened, so that it doesn’t happen again in the future.
Key now is working out which of its tool is reliable and can be trusted.
As Horner said: “It's not unusual that when something's not working on the car, you end up with different readings from your simulation tools, and they don't converge. Then you get three sets of data: you get CFD, you get wind tunnel and you get track.
“Obviously the one that really counts is the track data, but to develop it, it's like telling the time with three different watches, you've got to focus on the tool that's going to give you the most valuable input, and of course the track data is the most reliable.”
Christian Horner, Team Principal, Red Bull Racing
Photo by: Simon Galloway / Motorsport Images
The big question is how long will it take Red Bull to find the answers to its issues and how much development work that has been done, or is under way at its factory, will need to be ditched because of it.
Like others that have been in a similar situation, the consequences of spending time working through this can be severe.
If a team devotes effort to gathering data from old parts to hunt down problems, it means its focus is not on delivering improvements that make it quicker.
So, if you also have rivals who are on an upward trajectory, the performance disparity between you and them can become quick big.
Read Also:
Formula 1Missing Newey? Too complex a design? What’s turned Red Bull’s F1 car into a "monster"
Formula 1Wolff: Red Bull issues are “really weird” but could be just a “blip”
Formula 1Red Bull trapped in “vicious circle” with RB20 problems
This is development latency that isn’t visible, but can be altogether damaging not only for the remainder of this campaign but can also have implications going forward.
Another factor that has not gathered much attention is that F1 has been through a portion of the calendar where Pirelli has increased the minimum tyre pressures to match the load characteristics of the circuits being visited.
This can also push a car further away from its operating window, be it mechanically or aerodynamically, with both obviously also intrinsically linked with one another too.
