However, secrets don't last long in the fast-moving grand prix paddock and quickly and inevitably the idea took centre stage, as the imaginations of fans, media and teams ran wild.

The F-duct, as it was swiftly dubbed owing to the letter in the Vodafone sponsor logo next to the chassis inlet, was McLaren's novel and absurdly complex way of reducing drag.

Known internally by its project number, RW80, it would become a controversial but must have solution with the FIA allowing its use for just 2010 before being banned thereafter.

The system, which consisted of numerous pipework channels, was operated by the drivers on the straights in order to 'stall' the rear wing, reducing downforce and drag.

So, let's subdivide the system into two parts, the signal pipework that the driver could interact with, denoted 1,2 and 3 on the diagram, and the airflow conduits that delivered airflow to the rear of the car, labelled 4,5 and 6.

The signal pipework is used as a method to control the system, with the driver covering the hole in the cockpit [2] to engage or disengage the system. When the cockpit hole was uncovered, airflow taken in by the chassis snorkel [1] would flow through into the cockpit [2], whilst airflow taken in at the airbox would be fed through the fluidic switch [5] and out through the neutral engine cover outlet [7].

However, when the driver covered the hole in the cockpit, the airflow captured by the chassis inlet [2] would bypass the cockpit and travel through the signal pipework [3] to the fluidic switch chamber.

Once here, it would divert the airflow from the airbox [4] to the upper pipework and deliver it to the rear wing [6]. The airflow would then be fed out of the additional slot in the wing, causing the flow around it to break down and cause the 'stall'.

McLaren's system went through various iterations throughout the season as the team looked to get even more performance from it.

The cockpit hole that the driver used to operate the system was initially covered by the drivers' knee. However, a later version saw the pipework moved further into the cockpit in order that the drivers could use their elbow. Meanwhile, the snorkel inlet on top of the chassis had several redesigns in order to achieve a better flow into it.

The level of downforce and drag reduction required for each circuit also meant that McLaren had different options available to it at either end of the spectrum. Monaco resulted in the team using supplementary inlets and outlets in the mainplane, whilst at Monza it opted to use a conventional low downforce assembly, without the F-duct.

McLaren MP4-25 revised F-duct system, air pushed through mainplane, rather than the top flap (inset)

Photo by: Giorgio Piola

The team also made a revision to the entire rear-end of the assembly in Japan, with the ducting presented to the mainplane, rather than the top flap. This resulted in the corresponding slot on the rear face of the wing being moved too.

The FIA did not prevent the development of the F-duct, even though there were some questionable designs implemented which resulted, in some cases, in one-handed driving to activate it.

However, the FIA eventually opted to ban it for the following season and introduced the hydraulically activated Drag Reduction System.

Sauber C29 'F-Duct' detail, note intake on top of sidepod

1/10

Sauber was the first team to follow McLaren and introduce its own version of the F-Duct system, arriving at just the second round of the championship in Australia. The Swiss outfit's design differed from McLaren in several ways, with the snorkel placed on the sidepod, rather than the chassis. The rear wing feed and rearward slot was on the mainplane rather than the top flap too. To stabilise flow around the rear wing, it also chose to use an extra slot to feed the mainplane, in keeping with a solution it had used at the Singapore GP in 2009 (inset).

Photo by: Giorgio Piola

Mercedes AMG F1 W01 rear wing Chinese GP

2/10

Mercedes introduced its first version of the F-Duct at the Chinese GP, albeit in a very different guise to the other teams, seeing as it didn't use the shark fin engine cover connected to the rear wing.

Photo by: Giorgio Piola

Ferrari F10 rear wing and F-Duct revisions (old specification inset)

3/10

Ferrari also tested its first version of the F-Duct at the Chinese GP and would subsequently make changes to the system over the next few grands prix in order to improve its operation.

Photo by: Giorgio Piola

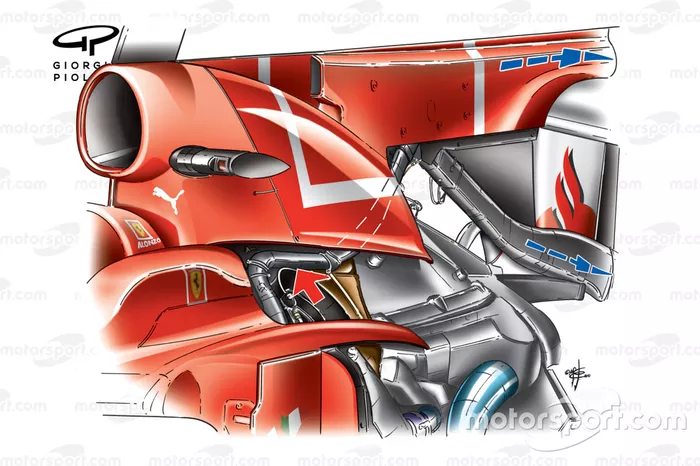

Ferrari F10 'F-Duct' internal pipework

4/10

The Scuderia also used supplementary inlets on the side of the airbox to feed the F-duct, as its airbox had already been optimised to feed the right amount of airflow to the engine.

Photo by: Giorgio Piola

Ferrari F10 'F-Duct' driver activation pipework

5/10

Supplementary signal pipework was placed in the cockpit in order that the driver could use the back of his hand to cover it when he wanted to activate the system.

Photo by: Giorgio Piola

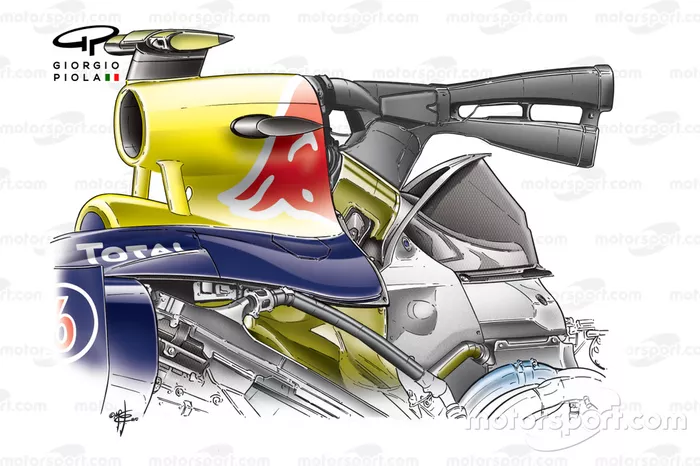

Red Bull RB6 'F-Duct' internal detail

6/10

Red Bull first tested its F-Duct solution at the Turkish GP but was not entirely happy with the system. It made some alterations before it reappeared and was raced at the British GP.

Photo by: Giorgio Piola

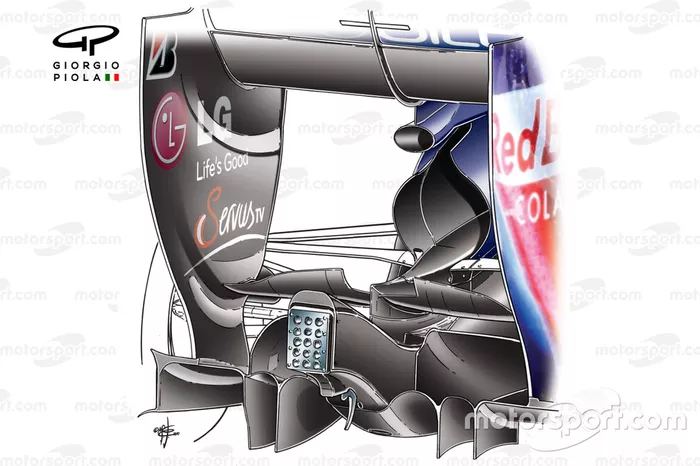

Red Bull RB6 rear end detail

7/10

One major difference with the Red Bull approach was that its neutral pipework exited above the main cooling outlet.

Photo by: Giorgio Piola

Force India VJM03 rear wing with F-duct layout

8/10

Force India introduced its F-Duct at the ninth round of the championship in Valencia.

Photo by: Giorgio Piola

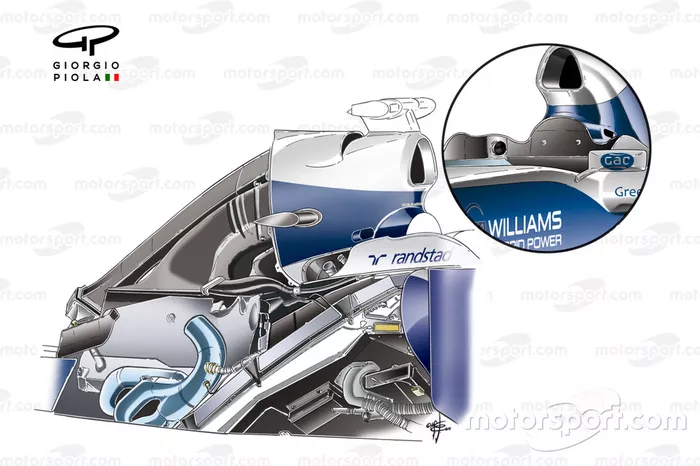

Williams FW32 'F-Duct' layout with pipework in cockpit rear face

9/10

The Williams F-Duct installation relied on a hole being created in the cockpit surround, with the signal pipework fed through the seat and cockpit padding. The team tested it ahead of its actual introduction at the European GP.

Photo by: Giorgio Piola

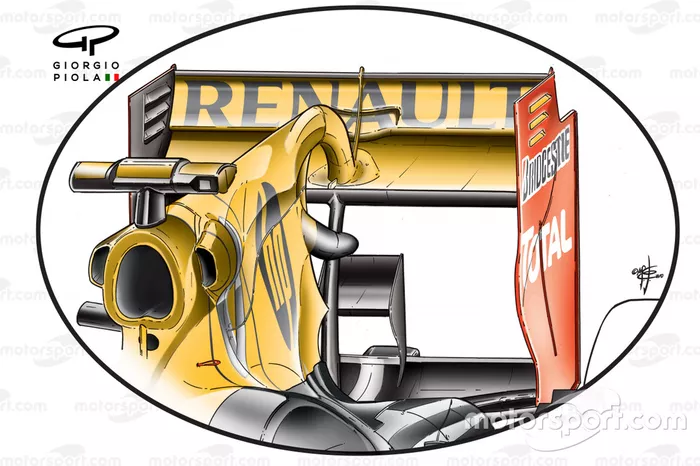

Renault R30 F-duct introduced

10/10

Renault was a latecomer, only introducing its F-Duct system at the Belgian GP.

Photo by: Giorgio Piola
