Mexico GP: F1 tech images from the pitlane explained
Join us as we delve into the Formula 1 technical features on display in the pitlane as teams prepare for the Mexican Grand Prix, courtesy of Giorgio Piola and Sutton Images.
Matt Somerfield Giorgio Piola
Edited: Oct 27, 2023, 4:21 PM
Copy link
Share on Viber
Giorgio Piola's F1 technical analysis
Giorgio Piola is the preeminent Formula 1 technical journalist. View our full selection of Giorgio's technical illustrative content
Photo by: Giorgio Piola
Ferrari SF-23 detail
Ferrari has opted for more cooling at the Mexican Grand Prix, as the rarified air at the circuit's altitude means teams are less concerned about the ill effects running so much cooling might have on the aerodynamic output.
Photo by: Uncredited
Alfa Romeo C43 technical detail
A look under the skin of the Alfa Romeo C43 without the nose and vanity panel fitted allows us to see some of the inboard front suspension elements and the brake cylinders. Without the outer brake drums in position we’re also able to see the front brake disc fairing employed by the team.
Photo by: Uncredited
McLaren MCL60 technical detail
McLaren looks set to employ a high downforce rear wing and beam wing layout from the suite of options at their disposal, which also includes an open-ended endplate and tip section solution. Note also the placement of a kiel probe array in the central portion of the wing that the team will use to collect data during FP1.
Photo by: Uncredited
McLaren MCL60 technical detail
It’s a high downforce option on the menu at the front of the car too, as a full-span Gurney can be found on the trailing edge of the MCL60’s front wing.
Photo by: Uncredited
McLaren MCL60 technical detail
A huge front brake duct inlet has been selected by McLaren too, with room having to be made in the sidewall of the scoop to accommodate the pull-rod suspension that intersects it.
Photo by: Uncredited
Alpine A523 technical detail
A good view of the Alpine A523 as it’s being prepared by the mechanics, with an interesting layout for its internal front brake duct fairings, which already appear to show signs of heat exhaustion. Also note the internal makeup of the bib and its sprung support system.
Photo by: Uncredited
Alpine A523 technical detail
Alpine also has a few front wings available, all of which feature the wavy trailing edge on the upper flap. In the foreground the wing has a bare trailing edge and small Gurney on the innermost section of the upper flap, while the lower one in the background does not.
Photo by: Uncredited

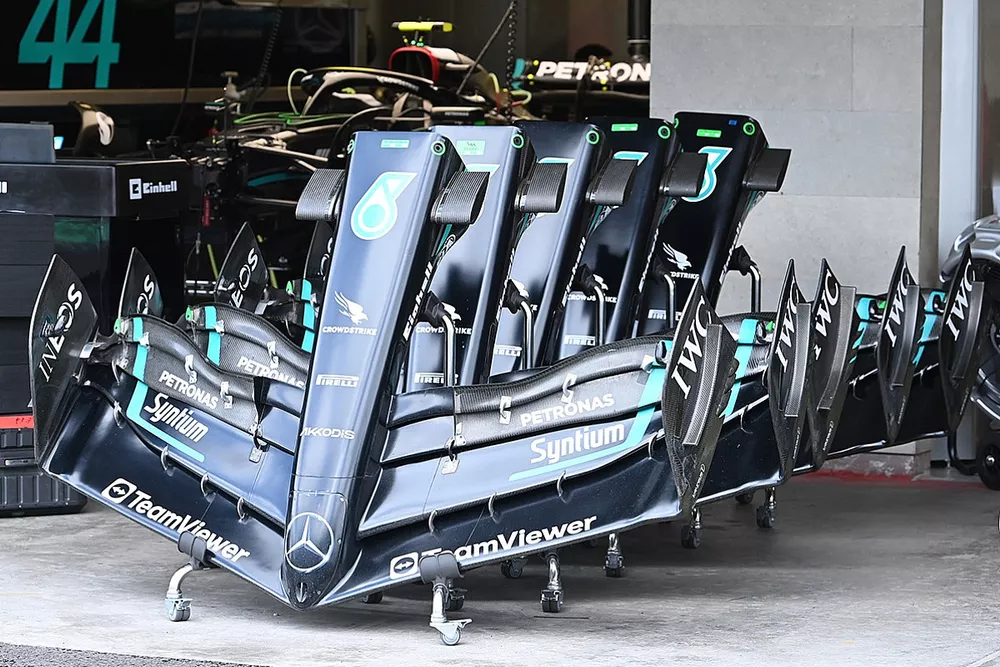

Mercedes F1 W14 technical detail
The front wing on the Mercedes W14 also has a Gurney in the central, moveable section of the upper flap.
Photo by: Uncredited
Mercedes F1 W14 technical detail
It’s a high downforce rear wing configuration for Mercedes in Mexico, as you’d expect, with the team employing its version of the open-ended endplate tip section. Also note the heat tape that’s been added to the front and rear brake drums.
Photo by: Uncredited
Ferrari SF-23 technical detail
Ferrari has a high downforce rear wing offering, complete with Gurney on the trailing edge of the upper flap. It continues to employ the more conventional tip section, unlike rivals, with an open-ended variant appearing just once so far this season, at the Belgian GP.
Photo by: Uncredited
Ferrari SF-23 technical detail
The rear crash structure, rear brakes and rear suspension of the Ferrari SF-23, with the upper wishbone mounted high, on top of the assembly.
Photo by: Uncredited
Red Bull Racing RB19 technical detail
Red Bull’s high downforce rear wing arrangement includes an open-ended endplate and tip section solution, and while there’s a Gurney on the trailing edge of the upper flap, there’s also a V-shaped notch in the central section to help reduce drag. Also note how displaced the rear brake ducts fence is from the drum in order to capture cool air, which is then divisible by the vanes mounted on the fence.
Photo by: Uncredited
Ferrari SF-23 technical detail
A look at the chassis, outer floor fence and leading edge of the floor on the Ferrari SF-23, with the dipped profile of the chassis a notable feature that allows the lower rear of the wishbone to be slung lower.
Photo by: Giorgio Piola
Ferrari SF-23 detail
The front brake assembly on the SF-23 without the brake disc fairing in place allows us to see the drilling pattern being employed.
