Day 2: F1 2020 testing tech updates, direct from Barcelona

Giorgio Piola and Sutton Images bring you an update of the best technical images from the Barcelona pitlane and track action on the second day of Formula 1 testing in 2020.

Day 2: F1 2020 testing tech updates, direct from Barcelona

Click on the arrows to cycle through the images below...

McLaren MCL35 detail
McLaren MCL35 detail
1/34
The McLaren MCL35 with a complex kiel probe array mounted within their airbox, measuring airflow into the structure to make sure it’s receiving the amount of airflow that was anticipated.

Photo by: Giorgio Piola

Ferrari SF1000 rear detail
Ferrari SF1000 rear detail
2/34
The Ferrari SF1000 with flo-viz painted on the diffuser as the team tries to identify any flow inconsistencies and make sure it’s performing as anticipated.

Photo by: Giorgio Piola

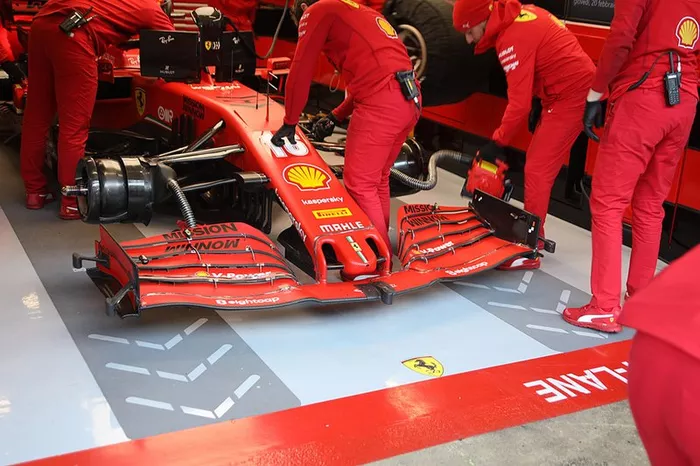

Ferrari SF1000 front wing detail
Ferrari SF1000 front wing detail
3/34
The SF1000 has also been outfitted with additional measuring equipment on the front wing during the second day of testing. These sensors, mounted on the outer portions and the centre of the wing measure ground clearance, in order that the team can check how much the wing is flexing.

Photo by: Giorgio Piola

Alex Albon, Red Bull Racing RB16
Alex Albon, Red Bull Racing RB16
4/34

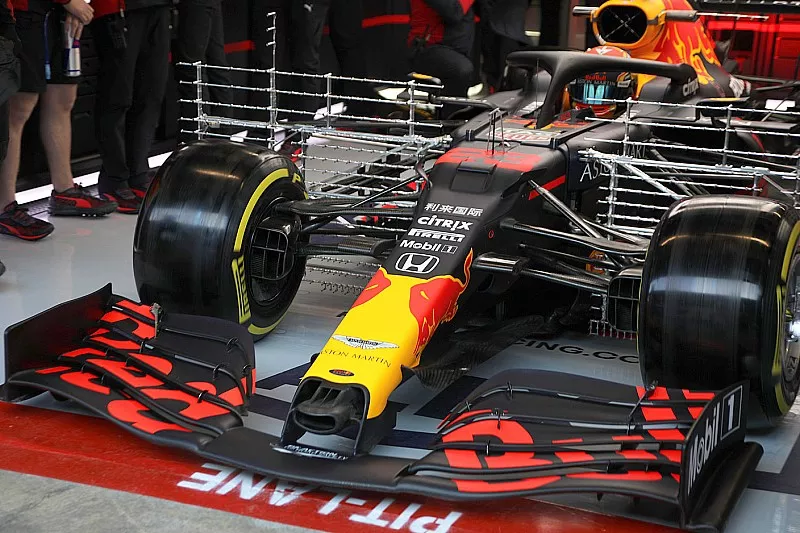

The Red Bull RB15 with large kiel probe rakes mounted behind the front wheels. Note how the frequency of the kiel probe changes at the base of the rake and the stanchions in the centre and above the wheel.

Photo by: Giorgio Piola

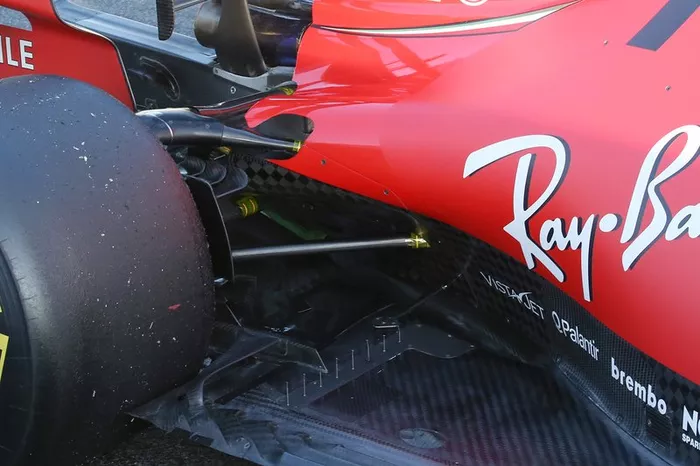

Ferrari SF1000 side floor detail
Ferrari SF1000 side floor detail
5/34
A small kiel probe array is mounted on the floor of the Ferrari SF1000, measuring airflow across the surface as it travels into the ‘coke bottle’ region.

Photo by: Giorgio Piola

Racing Point RP20 in the garage
Racing Point RP20 in the garage
6/34
This image of the Racing Point RP20 with the wheels off gives us a great view of the some aspects of the car that are often obscured, such as the bargeboards and splitter.

Photo by: Giorgio Piola

Lando Norris, McLaren MCL35
Lando Norris, McLaren MCL35
7/34
The McLaren MCL35 with a large kiel probe rake on the rear of the car, oopsie on the taller stanchion though, which obviously wasn’t designed to take such abuse, as it’s fallen over.

Photo by: Mark Sutton / Motorsport Images

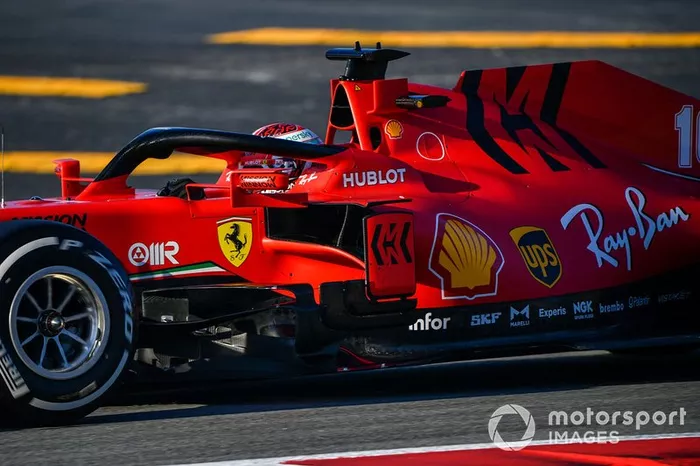

Charles Leclerc, Ferrari SF1000
Charles Leclerc, Ferrari SF1000
8/34
A nice action shot of the Ferrari SF1000 gives us a great view of the cars bargeboard arrangement, with special attention being drawn to the shape of the two boomerangs.

Photo by: Mark Sutton / Motorsport Images

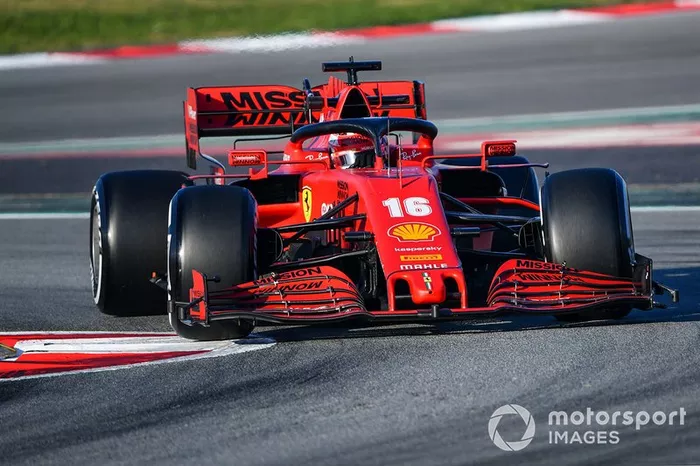

Charles Leclerc, Ferrari SF1000
Charles Leclerc, Ferrari SF1000
9/34
Another action shot of the SF1000, this time with the front wing sensors in place that we’ve already talked about but, also note the additional camera housed on the left-hand side of the airbox (the right side as you look at it).

Photo by: Mark Sutton / Motorsport Images

George Russell, Williams FW43
George Russell, Williams FW43
10/34

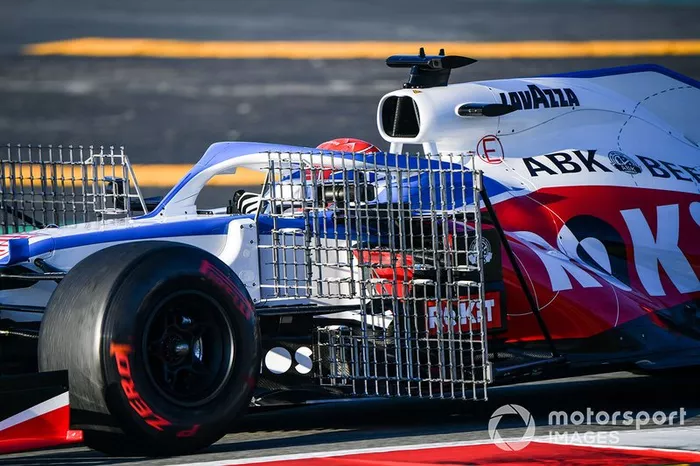

The Williams FW43 circulated with a pair of kiel probe rakes behind the front wheels during the morning session.

Photo by: Mark Sutton / Motorsport Images

Lando Norris, McLaren MCL35
Lando Norris, McLaren MCL35
11/34
A different angle of the McLaren MCL35 outfitted with the pair of kiel probe rakes at the rear.

Photo by: Mark Sutton / Motorsport Images

Alexander Albon, Red Bull Racing
Alexander Albon, Red Bull Racing
12/34
The Red Bull RB16 not only had kiel probe rakes behind the rear wheels but also one inside the airbox too.

Photo by: Andy Hone / Motorsport Images

Kimi Raikkonen, Alfa Romeo Racing C39
Kimi Raikkonen, Alfa Romeo Racing C39
13/34
The Alfa Romeo C39 with kiel probe rakes behind the front wheels measuring the wake created by the front tyre in order that they can establish a map of the airflow.

Photo by: Steven Tee / Motorsport Images

Pierre Gasly, AlphaTauri AT01
Pierre Gasly, AlphaTauri AT01
14/34

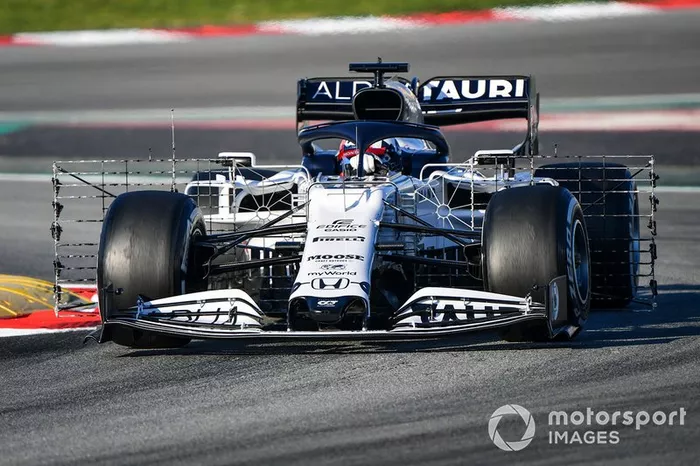

The Alpha Tauri also had kiel probe rakes placed behind the front wheels to take measurements

Photo by: Mark Sutton / Motorsport Images

Mercedes F1 W11 EQ Power+, rear wing
Mercedes F1 W11 EQ Power+, rear wing
15/34
The Mercedes W11 outfitted with kiel probe rakes on the rear of the car, measuring airflow ahead of the rear tyre and over the sidepods and engine cover.

Photo by: Mark Sutton / Motorsport Images

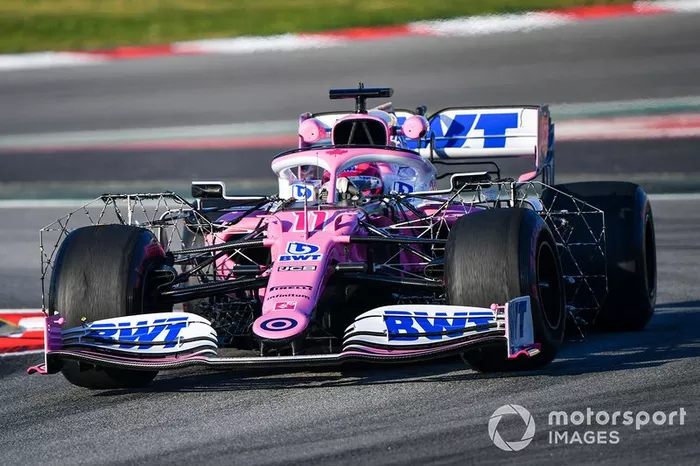

Sergio Perez, Racing Point RP20
Sergio Perez, Racing Point RP20
16/34

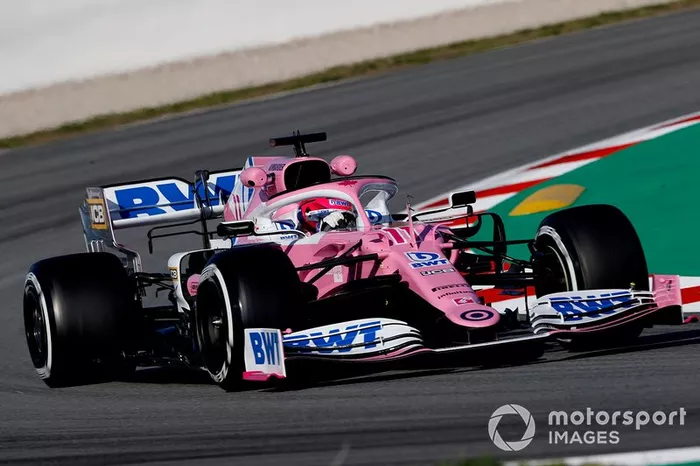

Perez behind the wheel of another raked up racer, all whilst a set of soft tyres appear to be a little angry with him.

Photo by: Mark Sutton / Motorsport Images

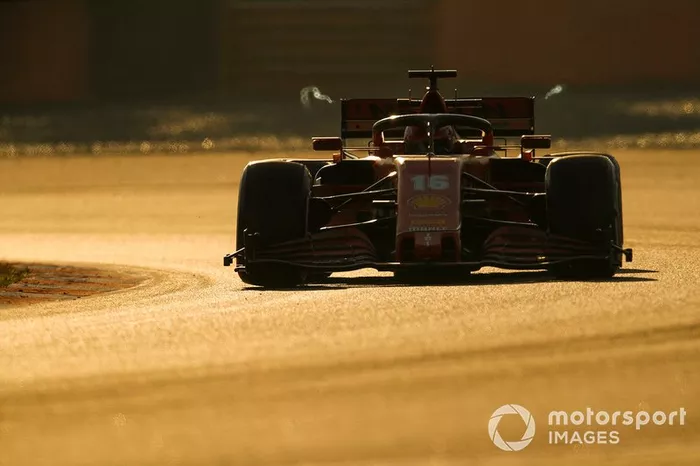

Charles Leclerc, Ferrari SF1000
Charles Leclerc, Ferrari SF1000
17/34
A brilliant action shot of the Ferrari SF1000 with the rear wing tip vortices visible.

Photo by: Zak Mauger / Motorsport Images

Daniel Ricciardo, Renault R.S.20
Daniel Ricciardo, Renault R.S.20
18/34

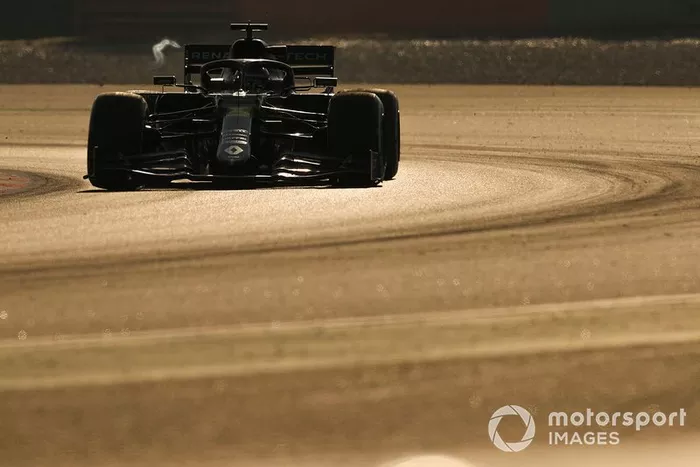

More rear wing tip vortex action, this time on the Renault RS20.

Photo by: Zak Mauger / Motorsport Images

Kimi Raikkonen, Alfa Romeo Racing C39
Kimi Raikkonen, Alfa Romeo Racing C39
19/34
Having ditched the kiel probe rakes, Alfa moved onto some flo-viz evaluation, painting the left-hand side of the car with oil based paint in order to correlate the real world airflow behaviour with the simulations done at the factory ahead of time.

Photo by: Mark Sutton / Motorsport Images

Kimi Raikkonen, Alfa Romeo Racing C39
Kimi Raikkonen, Alfa Romeo Racing C39
20/34
Another view of the Alfa Romeo C39 smothered in flo-viz.

Photo by: Mark Sutton / Motorsport Images

Alex Albon, Red Bull Racing RB16
Alex Albon, Red Bull Racing RB16
21/34
The Red Bull RB16 with a single horizontal row of kiel probes mounted just ahead of the rear wing.

Photo by: Mark Sutton / Motorsport Images

Sergio Perez, Racing Point RP20
Sergio Perez, Racing Point RP20
22/34
The Racing Point RP19 still sporting its bullet-shaped airbox pods which enclose additional infra-red cameras to monitor and map tyre performance.

Photo by: Andy Hone / Motorsport Images

Lando Norris, McLaren MCL35
Lando Norris, McLaren MCL35
23/34
Lando Norris at the wheel of the MCL35 with flo-viz paint on the two-element T-Wing arrangement.

Photo by: Mark Sutton / Motorsport Images

Lando Norris, McLaren MCL35
Lando Norris, McLaren MCL35
24/34
Norris took the car out for a run without the T-Wings too.

Photo by: Mark Sutton / Motorsport Images

Front wing aero detail of Alfa Romeo Racing C39
Front wing aero detail of Alfa Romeo Racing C39
25/34
A close up of Alfa Romeo’s front wing and the metal stays used to maintain the slot gaps and overall wing rigidity.

Photo by: Mark Sutton / Motorsport Images

Wing mirror aero detail on Alfa Romeo Racing C39
Wing mirror aero detail on Alfa Romeo Racing C39
26/34
A close-up of the Alfa Romeo’s sidepod, showing off the shape of their inlet and that they’ve lowered and brought forward their side impact spar that’s now housed in the lower sidepod bodywork.

Photo by: Mark Sutton / Motorsport Images

Steering wheel of Alfa Romeo Racing C39
Steering wheel of Alfa Romeo Racing C39
27/34
A good look at the Alfa Romeo C39’s steering wheel, noting the three main rotaries in the centre of the wheel, the various buttons and thumb rotaries.

Photo by: Mark Sutton / Motorsport Images

Alex Albon, Red Bull Racing
Alex Albon, Red Bull Racing
28/34
A good look at the Red Bull Rb16 as it not only compresses at the rear under load but also has flo-viz painted on the rear wing.

Photo by: Mark Sutton / Motorsport Images

Alex Albon, Red Bull Racing
Alex Albon, Red Bull Racing
29/34

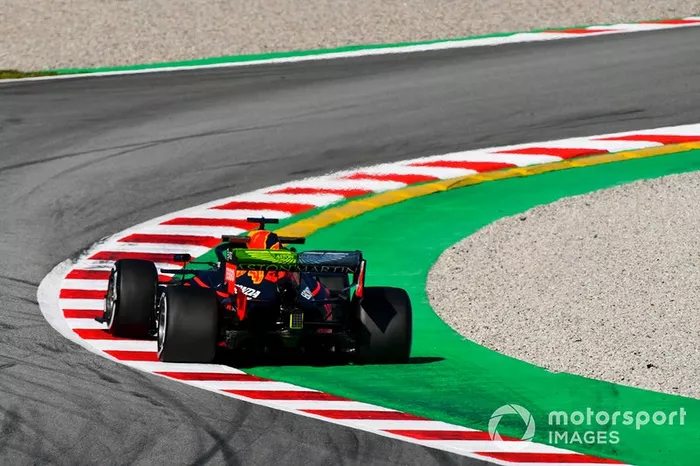

In this image Red Bull is taking a two-pronedg attack on the flo-viz with a green paint used on the left and a lighter blue one on the right.

Photo by: Mark Sutton / Motorsport Images

Aero detail on Alfa Romeo Racing C39
Aero detail on Alfa Romeo Racing C39
30/34
Some close-up aerodynamic detail here with the Sauber C39 hedgehog vanes atop the bargeboard visible, whilst their fresh turning vane design is shown in the background.

Photo by: Mark Sutton / Motorsport Images

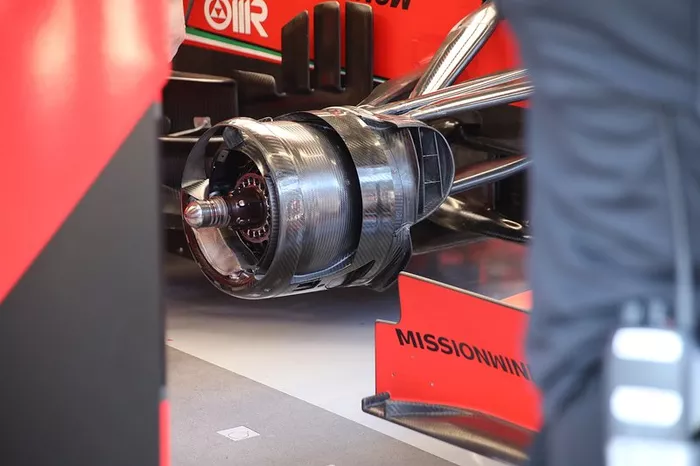

Ferrari SF1000 front brake
Ferrari SF1000 front brake
31/34
Ferrari’s front brake duct which emits as much airflow as possible out through the wheel rim for aerodynamic gain.

Photo by: Giorgio Piola

Valtteri Bottas, Mercedes AMG F1 W11
Valtteri Bottas, Mercedes AMG F1 W11
32/34
A top-down overview of the Mercedes W11 gives us a great view of the extremely complex bargeboard region.

Photo by: Giorgio Piola

Valtteri Bottas, Mercedes F1 W11
Valtteri Bottas, Mercedes F1 W11
33/34
Another top-down view of the W11, this time out on track and with flo-viz paint on the front suspension elements.

Photo by: Glenn Dunbar / Motorsport Images

Kimi Raikkonen, Alfa Romeo Racing C39 with aero paint
Kimi Raikkonen, Alfa Romeo Racing C39 with aero paint
34/34

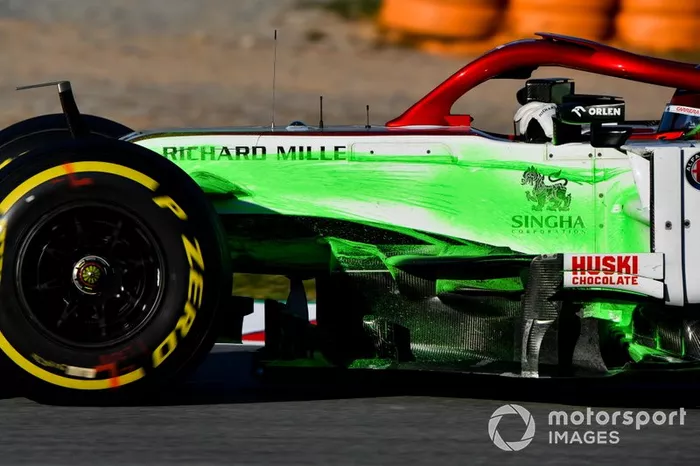

A really good view of the flo-viz on the Alfa Romeo C39 and how it’s transmitted down the side of the chassis as the airflow moves over the car.

Photo by: Mark Sutton / Motorsport Images
