British GP: Latest F1 tech updates, direct from the garages

Formula 1 hits Great Britain this weekend, and Giorgio Piola and Sutton Images reveal the all-important technical updates on show in the Silverstone pitlane.

Giorgio Piola Matt Somerfield
Edited:
Force India VJM11 engine view

Giorgio Piola's F1 technical analysis

Giorgio Piola is the preeminent Formula 1 technical journalist. View our full selection of Giorgio's technical illustrative content

Mercedes AMG F1 W09 inside chassis
A rare glimpse inside the W09’s chassis, which is ordinarily covered by brake cylinders and a carbon housing.
Ferrari SF71H rear wing
Ferrari brings its spoon-shaped rear wing once more, with a design similar to the one already used in Azerbaijan mounted on the car ahead of Free Practice.
Red Bull Racing RB14 front suspension detail
Mechanics prepare an RB14 – they’re working on the support for the splitter/T-Tray but also note the car is setup with the mechanical variant third damper, utilizing Belleville springs rather than a hydraulic accumulator.
Mercedes-AMG F1 W09 detail
The three-phase electrical connectors for the W09’s energy recovery system.
Scuderia Toro Rosso STR13 brakes
A close-up view of Toro Rosso’s front brake assembly and blown axle.
Force India VJM11 side pods

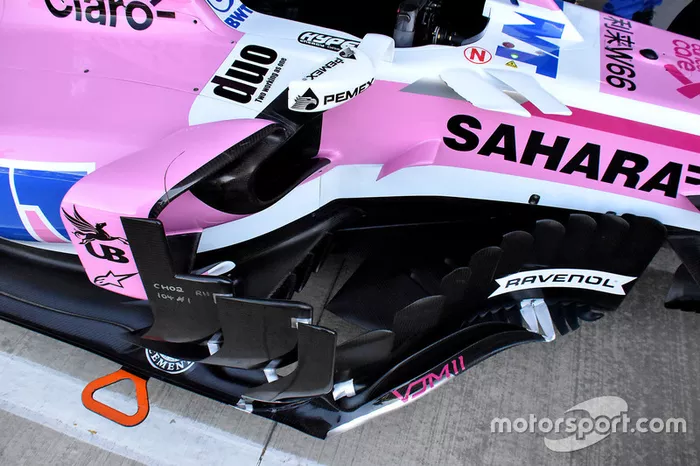

A good look at all the detail work of Force India’s bargeboards and associated aerodynamic paraphernalia. Also note the continued use of the pink chassis canard added in France (left of the Sahara logo).
Ferrari SF71H detail
The revised sidepod and engine cover cooling package that Ferrari looks set to use at Silverstone, which features a valley in the central section in order to change the behavior of the airflow in that region.
Red Bull Racing RB14 rear wing
A look at the current rear wing trim level of RB14, which is likely to alter as the team conducts its setup work.
Ferrari SF71H rear and diffuser

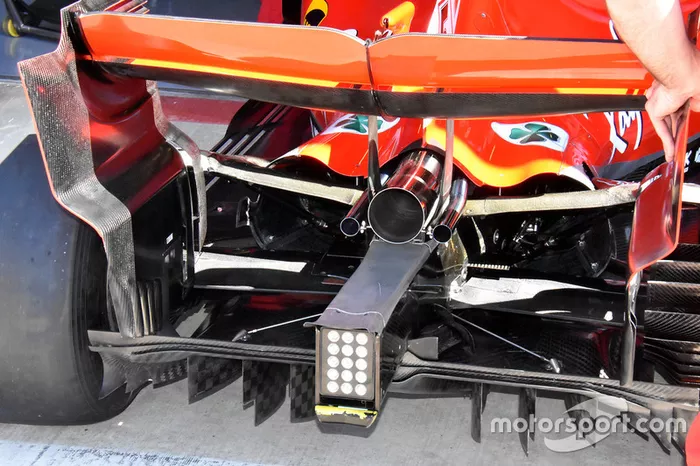

A rearward view of Ferrari’s spoon-shaped rear wing, revised cooling outlets and diffuser.
Scuderia Toro Rosso STR13 rear
A look under the engine cover of the STR13 which features a saddle-style cooler above the airbox pipework, much like the McLaren did when it was powered by Honda.
Ferrari SF71H floor

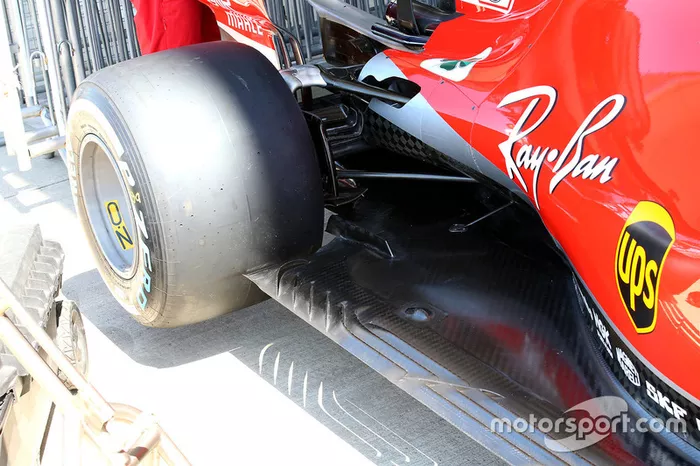

Ferrari’s new floor for Silverstone features an extra-long slot ahead of the rear tyre and some strengthening adaptations to limit flex.
Ferrari SF71H floor

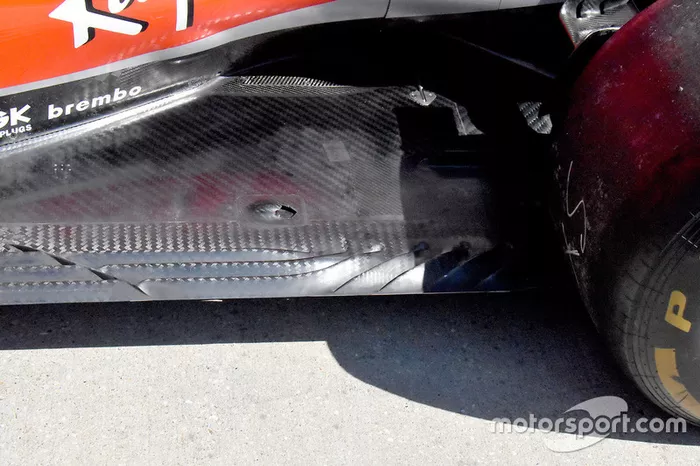

Another angle of the new floor being used by Ferrari this weekend along with a revised rear brake duct, which has been split into three distinct sections.
Force India VJM11 engine view

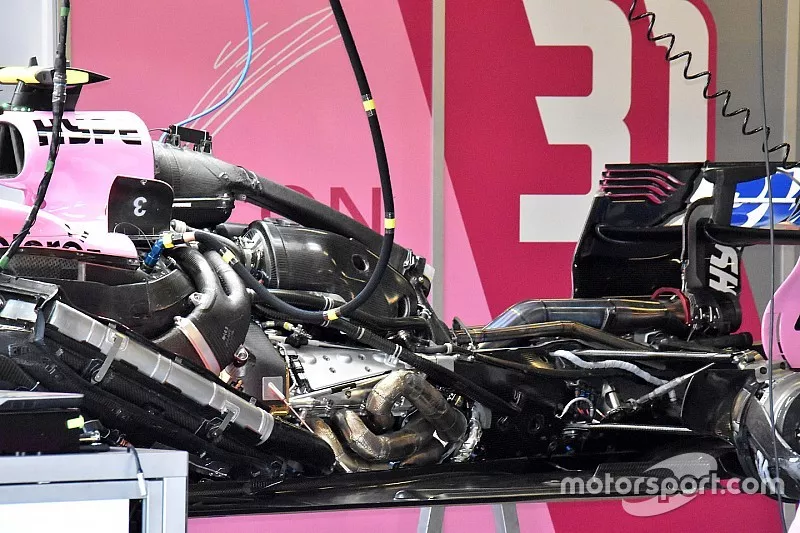

A bare VJM11 shows off not only the Mercedes power unit but also the installation preferences of the Force India team, which is still preferring to use an air-to-air intercooler in the sidepods rather than a liquid-to-air arrangement like the ‘works’ team.
