Italian GP: Monza F1 technical developments

Join us as we again delve into the latest technical developments on display at the Italian Grand Prix at Monza, courtesy of Giorgio Piola and Motorsport Images.

Italian GP: Monza F1 technical developments

Click on the arrows on the images to scroll through them…

Red Bull Racing RB16 floor
Red Bull Racing RB16 floor
1/22
This shot has a wealth of detail, as not only do we see the angled holes ahead of the rear tyre, the rear suspension and the very narrow bodywork on the RB16, you’ll also note a bulge around the floor strake beside the rear tyre. This houses the equipment and logging medium for the row of kiel probes that are hidden beneath the red box so they don’t get damaged as the car is moved around the pitlane.

Photo by: Giorgio Piola

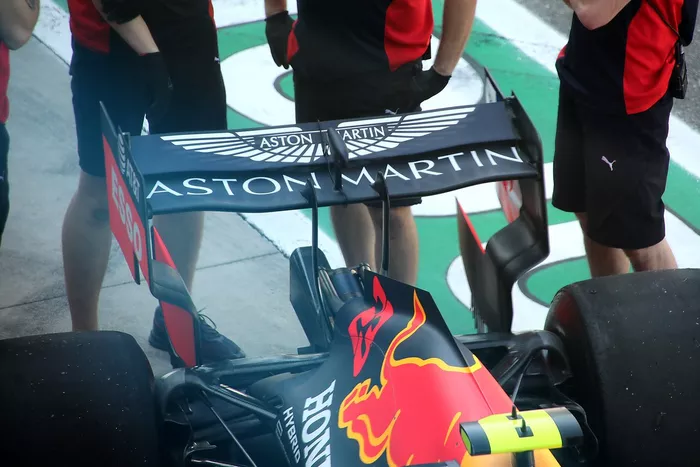

Red Bull Racing RB16 rear
Red Bull Racing RB16 rear
2/22
The extremely low downforce version of Red Bull’s rear wing is similar to the one used last weekend at Spa but the mainplane angle has been reduced further still, while the upper flaps trailing edge has been cut down and no longer has a Gurney flap.

Photo by: Giorgio Piola

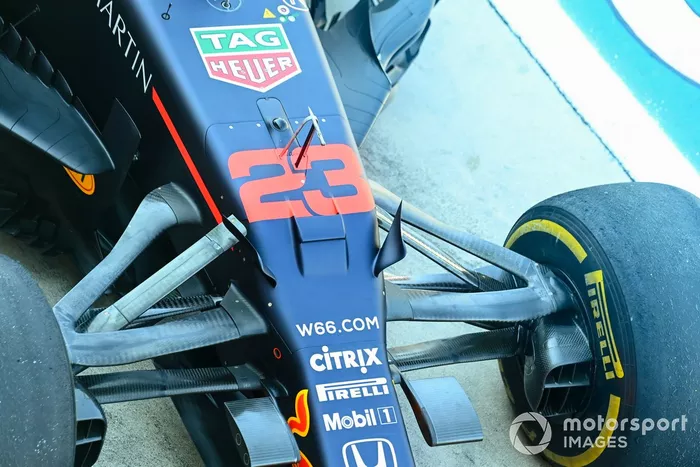

Front suspension detail on the Red Bull Racing RB16
Front suspension detail on the Red Bull Racing RB16
3/22
An overview of the RB16’s novel front-end arrangement, complete with the steering assembly being placed much further back and the use of a very narrow ‘S’-duct outlet.

Photo by: Mark Sutton / Motorsport Images

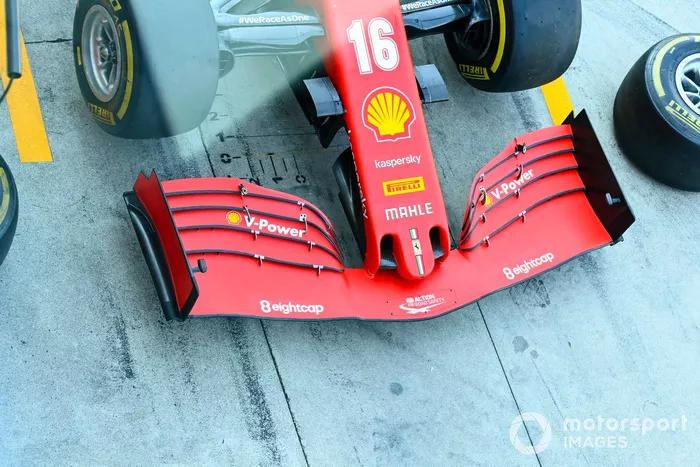

Front wing detail on the Ferrari SF1000
Front wing detail on the Ferrari SF1000
4/22
Ferrari’s front wing features a very slim upper flap at the inner section to trim the balance of the car in accordance with the level of downforce being used at the rear. Also note, that while most of the field are trying to narrow their noses and use the space that’s left over to create an enlarged cape, Ferrari has not. It retains the thumb-tip style nose, with a short cape and turning vanes in behind.

Photo by: Mark Sutton / Motorsport Images

Rear wing detail on the Ferrari SF1000
Rear wing detail on the Ferrari SF1000
5/22
The extremely low downforce rear wing that Ferrari installed this weekend features a very shallow angle of attack.

Photo by: Mark Sutton / Motorsport Images

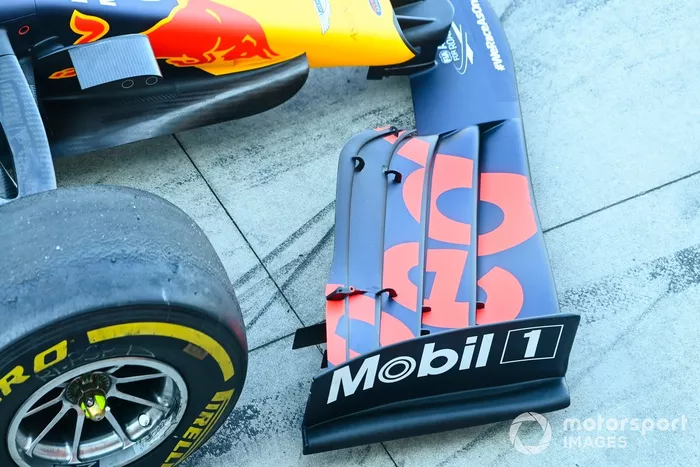

Front wing detail on the Red Bull Racing RB16
Front wing detail on the Red Bull Racing RB16
6/22
This view of the RB16’s front wing shows how much of the upper flap has been cut back in order to reduce the downforce being generated and balance it against what’s being created by the rear wing. You’ll note that this almost ad-hoc approach has seen the trailing edge pared back to the wing adjuster and results in some of the vinyl lettering on the wing being incorrectly spaced.

Photo by: Mark Sutton / Motorsport Images

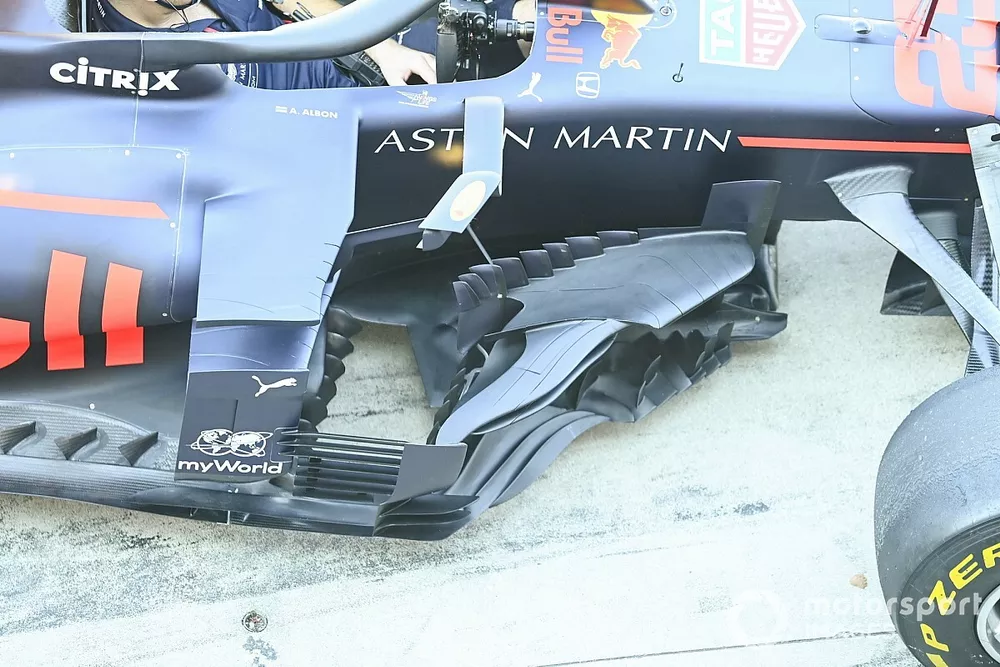

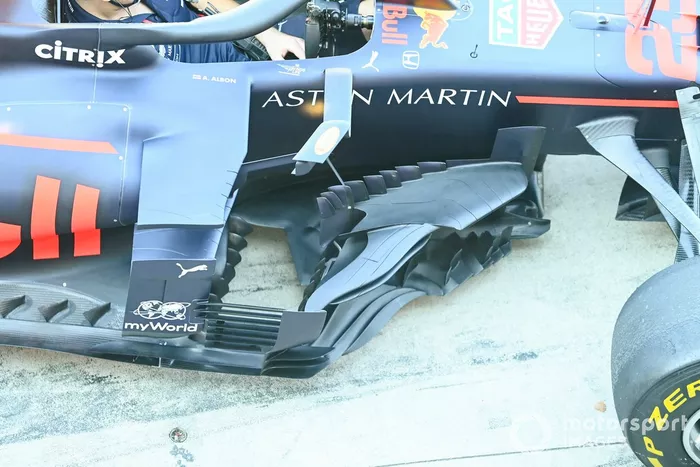

Aero bargeboard detail on the Red Bull Racing RB16
Aero bargeboard detail on the Red Bull Racing RB16
7/22
Top-down overview of the bargeboard region on the RB16 and what you’ll note is how each tier above the reference plane also has slots in the surface that correspond in order to maintain legality.

Photo by: Mark Sutton / Motorsport Images

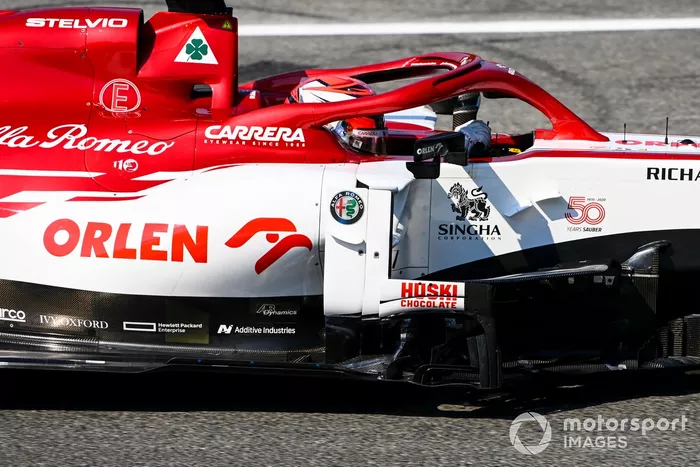

Kimi Raikkonen, Alfa Romeo Racing C39
Kimi Raikkonen, Alfa Romeo Racing C39
8/22
Side-on view of the Alfa Romeo C39 and the bargeboard and deflector solutions, the former of which has been modified as of late as the team just look to rekey some of the aerodynamic structures as they pass down the flank of the car.

Photo by: Mark Sutton / Motorsport Images

Flow-viz paint on the car of Kimi Raikkonen, Alfa Romeo Racing C39
Flow-viz paint on the car of Kimi Raikkonen, Alfa Romeo Racing C39
9/22
At the rear of the car, flo-viz paint is applied to the Monza specification rear wing to make sure it’s performing as anticipated, as while it was briefly tested it at Spa the actual conditions at Monza are a little different.

Photo by: Mark Sutton / Motorsport Images

Antonio Giovinazzi, Alfa Romeo Racing C39
Antonio Giovinazzi, Alfa Romeo Racing C39
10/22
Looking at the wing from the front the team has a very unique design for the mounting pillars, with the upper surface almost lopped off when compared with the design they usually favour.

Photo by: Mark Sutton / Motorsport Images

Alex Albon, Red Bull Racing RB16
Alex Albon, Red Bull Racing RB16
11/22
This rearward shot of the RB16 perfectly illustrates just how little angle that the team has on the rear wing this weekend.

Photo by: Mark Sutton / Motorsport Images

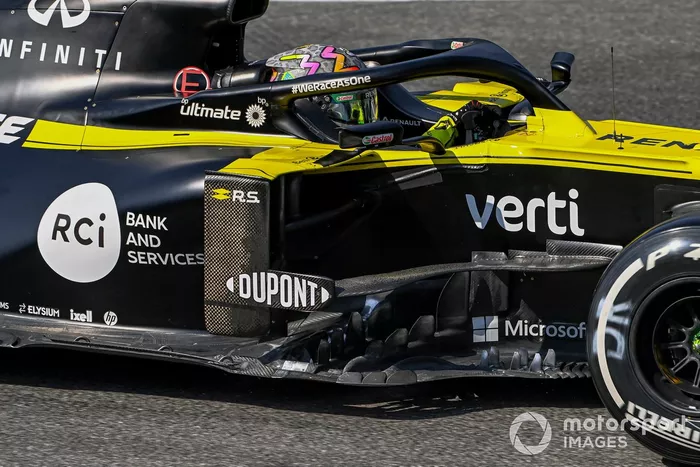

Daniel Ricciardo, Renault F1 Team R.S.20
Daniel Ricciardo, Renault F1 Team R.S.20
12/22
The bargeboard and deflector region on the Renault RS20 with its various hedgehog-like surfaces. Appears the team also had more data gathering equipment on the car, the telltale sign being the wiring on the side of the chassis leading into the cockpit.

Photo by: Mark Sutton / Motorsport Images

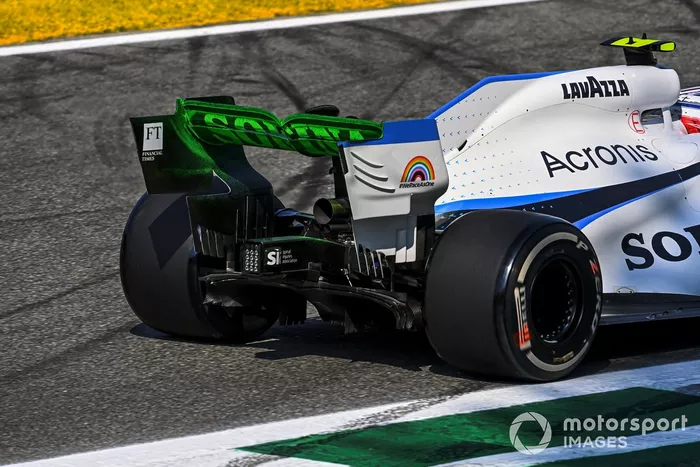

Flow-viz paint on the rear of Nicholas Latifi, Williams FW43
Flow-viz paint on the rear of Nicholas Latifi, Williams FW43
13/22
Williams also painted flo-viz on the rear wing of Nicolas Latifi’s car as they looked to get visual confirmation of how the wing is performing around Monza.

Photo by: Mark Sutton / Motorsport Images

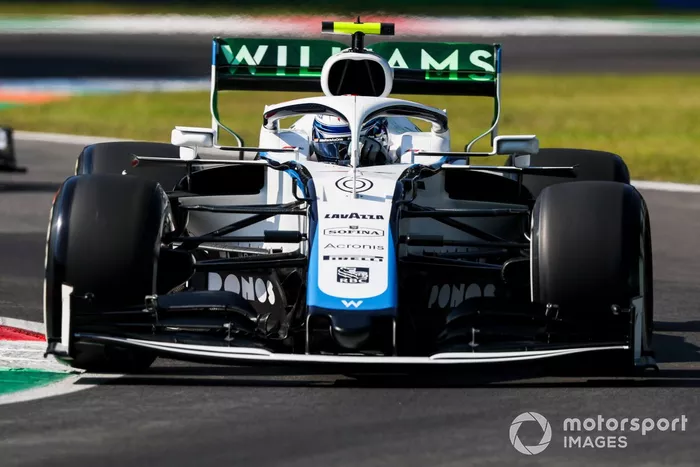

Nicholas Latifi, Williams FW43
Nicholas Latifi, Williams FW43
14/22
The forward view of Latifi’s car which confirms he was using a lower downforce rear wing when compared with Nissany who subbed in for George Russell in FP1. You’ll also note he only has the one chassis canard on his car too, on the left-hand side (right as you’re looking at it).

Photo by: Charles Coates / Motorsport Images

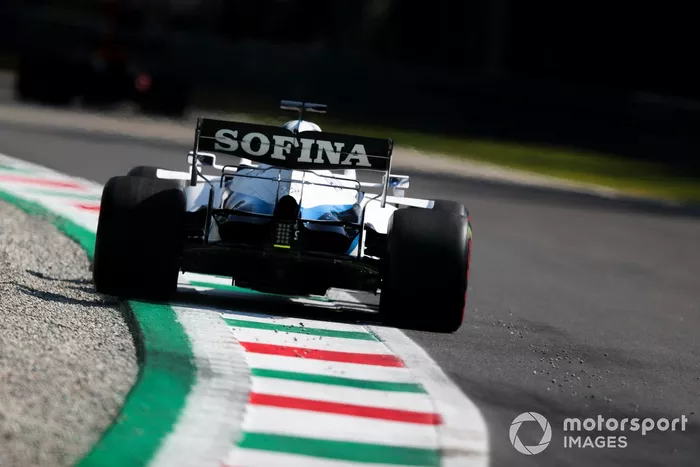

Roy Nissany, Williams FW43
Roy Nissany, Williams FW43
15/22
A rearward shot of Nissany’s car during FP1 featuring the higher downforce spoon-shaped rear wing and complementary T-Wing.

Photo by: Charles Coates / Motorsport Images

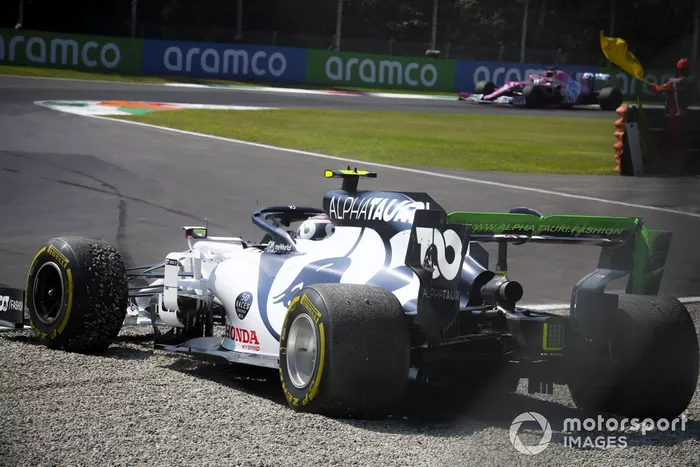

Pierre Gasly, AlphaTauri AT01 spins into the gravel
Pierre Gasly, AlphaTauri AT01 spins into the gravel
16/22
Gasly, having taken a trip through the gravel, presents us with a shot of the flo-viz on his rear wing.

Photo by: Charles Coates / Motorsport Images

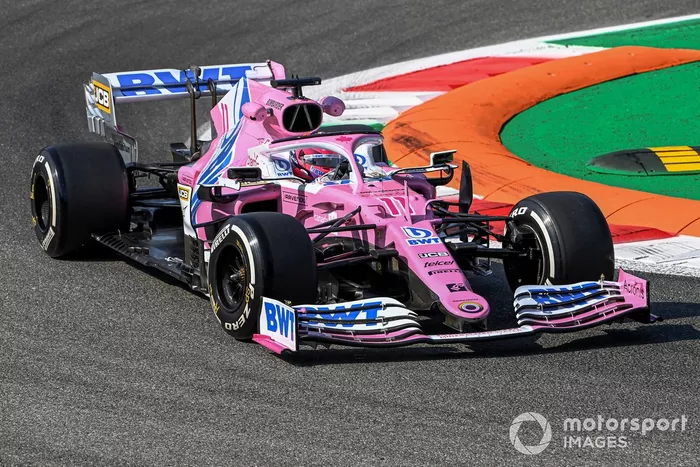

Sergio Perez, Racing Point RP20
Sergio Perez, Racing Point RP20
17/22
Sergio Perez at the wheel of his Racing Point RP20 tests out the lower downforce rear wing, which has a shallower angle of attack this weekend and no Gurney on the trailing edge.

Photo by: Mark Sutton / Motorsport Images

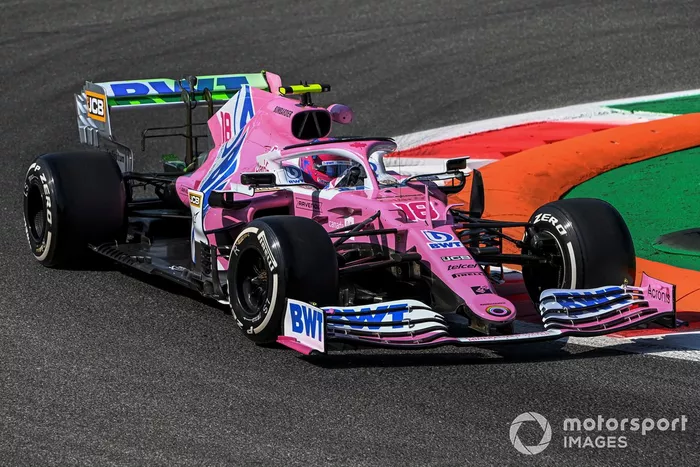

Lance Stroll, Racing Point RP20
Lance Stroll, Racing Point RP20
18/22
Lance Stroll completes some laps with a T-Wing mounted on the rear of his RP20, supplementing the lower downforce rear wing.

Photo by: Mark Sutton / Motorsport Images

Lando Norris, McLaren MCL35
Lando Norris, McLaren MCL35
19/22
A relatively simple low downforce rear wing for McLaren at Monza, as the team prefers not to chase complex rear shapes like some rivals.

Photo by: Charles Coates / Motorsport Images

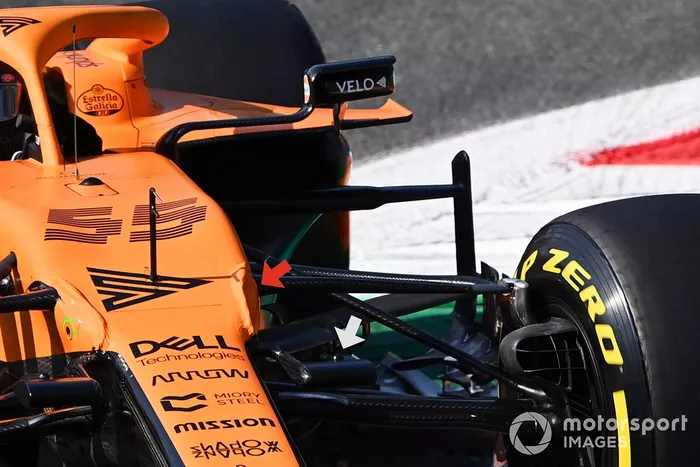

McLaren MCL35 camera detail
McLaren MCL35 camera detail
20/22
McLaren briefly ran with some additional components within the front camera pod housing, likely capturing hi-speed footage to monitor flutter (white arrow) with the giveaway of their installation being this cabling shrink wrapped to the chassis (red arrow).

Photo by: Mark Sutton / Motorsport Images

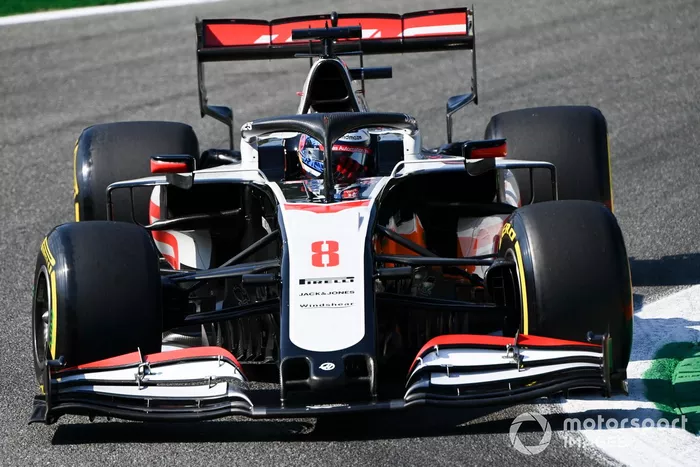

Romain Grosjean, Haas VF-20
Romain Grosjean, Haas VF-20
21/22
The low downforce rear wing favoured by Haas, with its bow tie style trailing edge to the upper flap, as it sweeps down to meet the slot gap separators. Also note the amount of front wing angle taken out by the difference between the wing angle of the outer and inner sections displayed near the adjuster.

Photo by: Mark Sutton / Motorsport Images

Carlos Sainz Jr., McLaren MCL35
Carlos Sainz Jr., McLaren MCL35
22/22
The McLaren MCL35 with flo-viz on the rear wing as the team looks for visual confirmation that the wing is performing as anticipated.

Photo by: Andy Hone / Motorsport Images
