Australian GP: Latest F1 tech updates, straight from pitlane

Giorgio Piola and Sutton Images provide us with the best technical images from the pitlane as preparations get underway for the Australian GP

Australian GP: Latest F1 tech updates, straight from pitlane

Click on the arrows to cycle through the images below...

Mercedes F1 W11 rear detail
Mercedes F1 W11 rear detail
1/18
A close-up of the rear of the Mercedes W11's suspension upright, which has been opened up to comply with the FIA's new technical directive on the matter.

Photo by: Giorgio Piola

Racing Point RP20, brake detail
Racing Point RP20, brake detail
2/18
Racing Point's rear brake and suspension assembly. Note how the channel formed in the upright has been plugged with styrofoam, as the team looks at ways to comply with the FIA's new technical directive on the matter.

Photo by: Giorgio Piola

McLaren MCL35, wing detail
McLaren MCL35, wing detail
3/18
McLaren has two front wing specifications available to them in Australia. The top one is the newest spec and was trialed throughout the second week of the pre-season test.

Photo by: Giorgio Piola

Racing Point RP20
Racing Point RP20
4/18

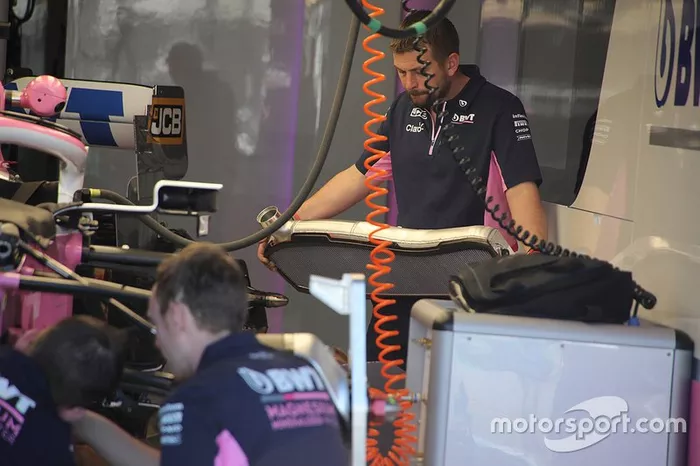

A Racing Point mechanic handles the intercooler before it's fitted in the left-hand sidepod.

Photo by: Giorgio Piola

Racing Point RP20
Racing Point RP20
5/18
Racing Point mechanics prepare the radiator for the right-hand sidepod.

Photo by: Giorgio Piola

Mercedes F1 W11
Mercedes F1 W11
6/18

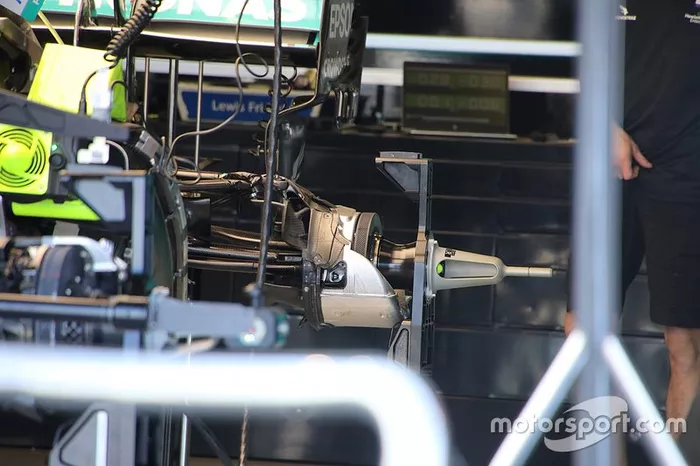

A look at Mercedes' rear brake assembly before the covers go on. Note the silver ductwork which carries air from the inlet to cool the brake caliper within.

Photo by: Giorgio Piola

Ferrari SF1000
Ferrari SF1000
7/18
Ferrari's sidepod and engine cover bodywork which is made from one much larger piece, rather than smaller sections as done elsewhere on the grid.

Photo by: Giorgio Piola

Ferrari SF1000 front detail
Ferrari SF1000 front detail
8/18
The brake duct design on the Ferrari SF1000 features a two-piece drum, improving the airflows path as it travels across the face of the assembly and out through the wheel rim.

Photo by: Giorgio Piola

Haas F1 Team VF20, floor detail
Haas F1 Team VF20, floor detail
9/18
The Haas VF20's floor section ahead of the rear tyre has a different finish, as the team look to improve stability in a region where multiple slots and holes could easily cause it to be damaged.

Photo by: Giorgio Piola

Renault F1 Team R.S.20 front wing detail
Renault F1 Team R.S.20 front wing detail
10/18

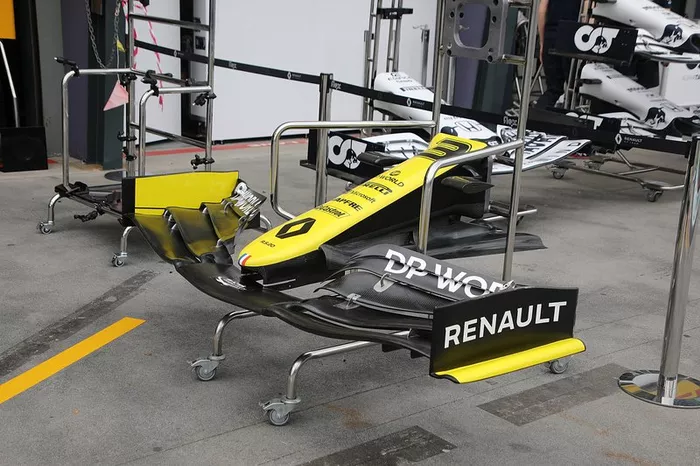

Renault's 2020 nose design, which features a main structure akin to what were seen from Mercedes over the last few seasons and an enlarged cape.

Photo by: Giorgio Piola

Mercedes F1 W11 front suspension detail
Mercedes F1 W11 front suspension detail
11/18
An exposed view of Mercedes front end with the much talked about steering assembly for DAS in clear view.

Photo by: Giorgio Piola

McLaren MCL35 rear suspension detail
McLaren MCL35 rear suspension detail
12/18
The McLaren MCL35's rear suspension, note how the brake duct is opened up on the upper surface to gather in more airflow.

Photo by: Giorgio Piola

McLaren MCL35 diffuser detail
McLaren MCL35 diffuser detail
13/18
The new diffuser which was tested by McLaren during the second week of pre-season testing.

Photo by: Giorgio Piola

McLaren MCL35 sidepods detail
McLaren MCL35 sidepods detail
14/18
The McLaren MCL35's bargeboard and deflector region.

Photo by: Giorgio Piola

Mercedes F1 W11 sidepods detail
Mercedes F1 W11 sidepods detail
15/18
As a comparison a similar area on the Mercedes W11. Note how they use more horizontal sections to bridge the gap in the middle of the deflector panel.

Photo by: Giorgio Piola

Mercedes F1 W11 rear detail
Mercedes F1 W11 rear detail
16/18
The Mercedes W11's rear wing assembly and single element T-wing. Also note the single bladed element between the rear wing pillars, above the exhaust. This just helps to tidy up the flow coming off the engine cover before they're influenced by the exhaust gasses.

Photo by: Giorgio Piola

Williams FW43 floor detail
Williams FW43 floor detail
17/18
The Williams FW43's floor has metalwork stitched into the floor around the tyre squirt slots, in order that the floor doesn't flex too much and close the gap, reducing their effectiveness.

Photo by: Giorgio Piola

Mercedes F1 W11 front suspension detail
Mercedes F1 W11 front suspension detail
18/18
This top-down overview of the Mercedes W11's sidepod shows the louvred cooling panel alongside the cockpit, which is currently utilizing one of their largest configurations.

Photo by: Giorgio Piola
